| Part Number | NTD-10.1S1280800L100B |
| Size | 10.1 inch |
| Resolution | 1280xRGBx800 |
| Display Type | IPS (Normally Black), Transmissive TFT |
| Optimal View | Full View |
| Touchscreen | None |

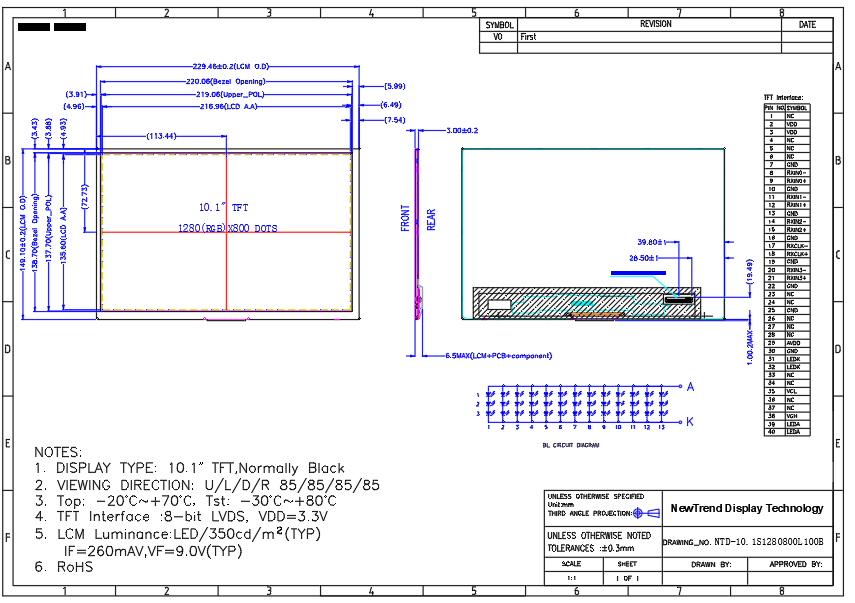

| Outline | 229.46(W)x149.1(H)x2.6(T) mm |
| Active Area | 216.96(W)x135.6(H) mm |
| Supply Voltage | 3.3 V |
| Luminance | 350cd/m² (typ.) |
| Interface | LVDS |
| Pin Number | 40 pins |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
