10.1 Inch 1280x800 IPS Sunlight Readable

Specifications:

Part Number	NTD-10.1S1280800L150G
Size	10.1 inch
Resolution	1280xRGBx800
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	229.8(W)x149(H)x5.9(T) mm
Active Area	216.96(W)x135.6(H) mm
Supply Voltage	3.3 V
Luminance	1000cd/m² (typ.)
Interface	LVDS
Pin Number	40 pins
Operating Temperature	-30℃~80℃
Storage Temperature	-30℃~85℃

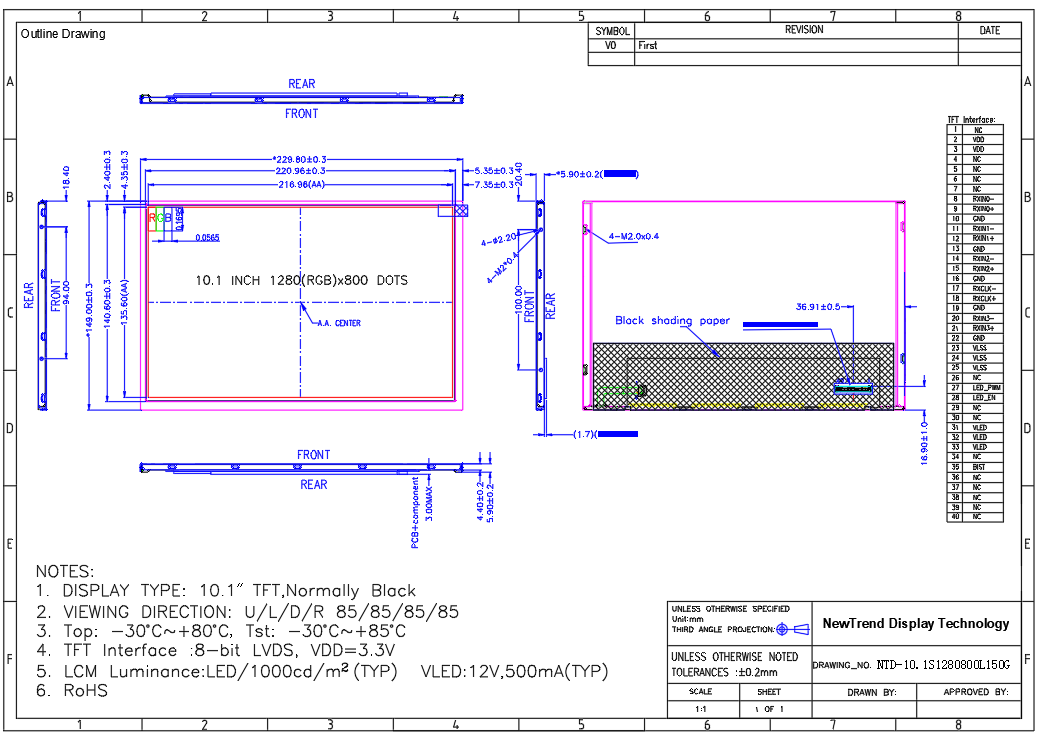

Dimension:
