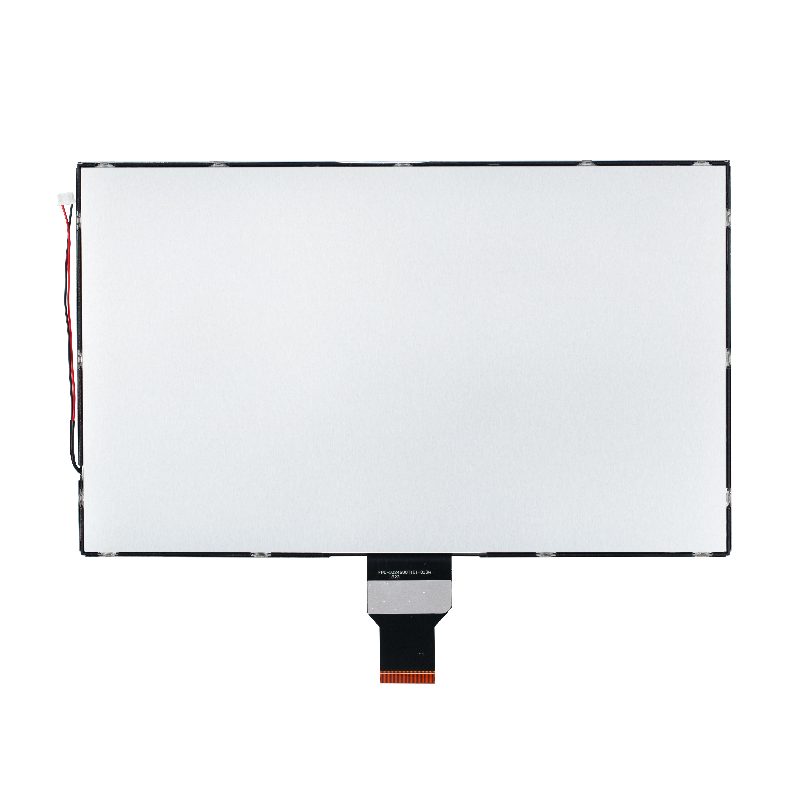

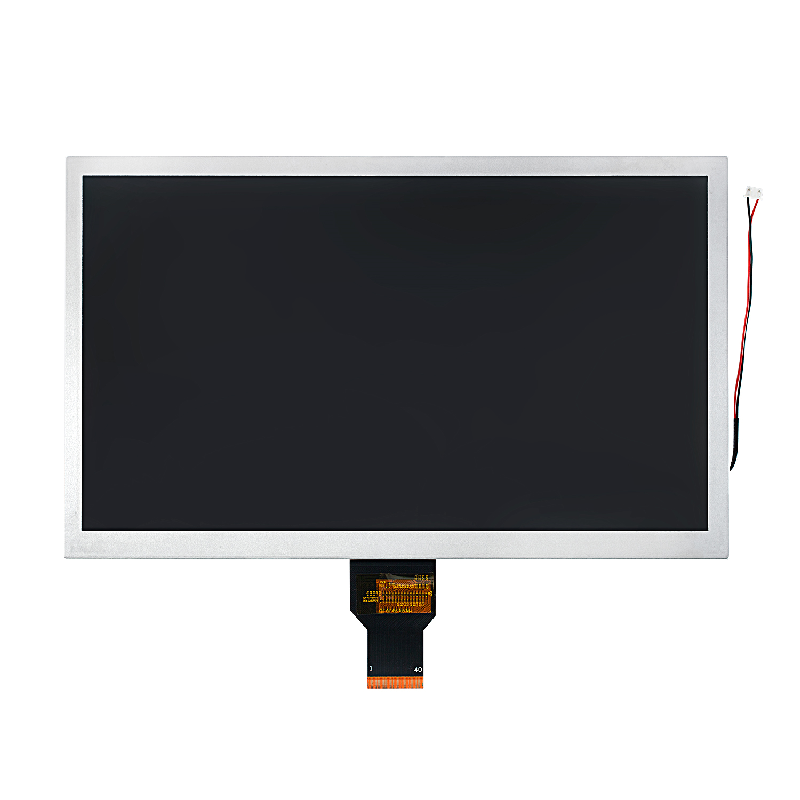

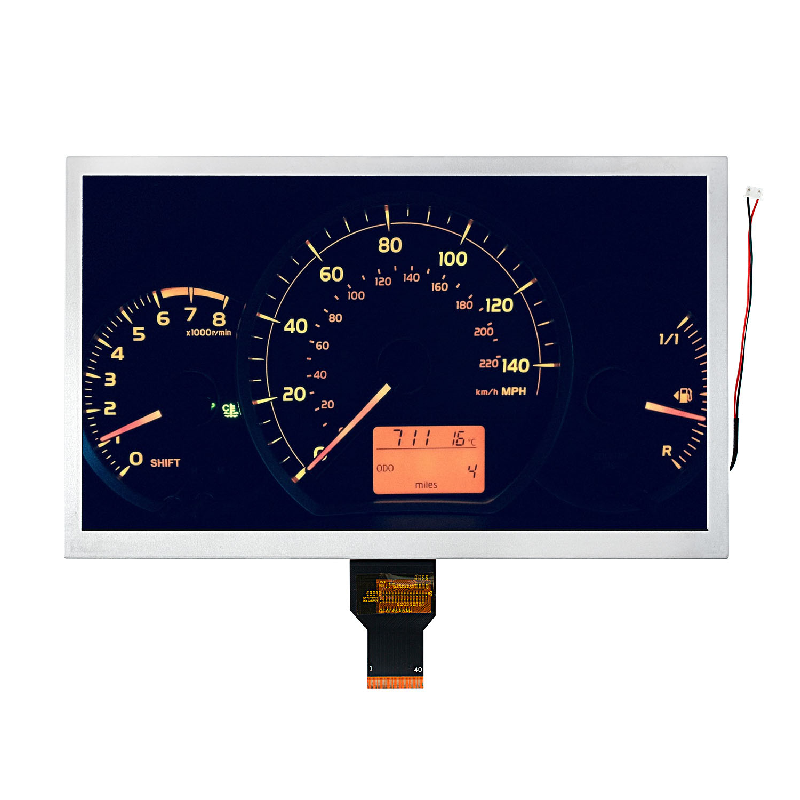

10.1 Inch 1024x600 Standard TFT LVDS Interface Display

  • Model: NTD-10.1T1024600L100A
  • 10.1inch Diagonal
  • 1024xRGBx600 resolution
  • LVDS interface
  • LED Blacklight (250cd/㎡)
  • 16.7 M colors
  • 12:00 O’clock Optimal View
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-10.1T1024600L100A
Size10.1 inch
Resolution1024xRGBx600
Display TypeTN(Normally White), Transmissive TFT
Optimal View12 o'clock
TouchscreenNone
Outline235.00(W)x143.00(H)x4.60(T) mm
Active Area222.72(W)x125.28(H) mm
Supply Voltage3.3V
Luminance250cd/m² (typ.)
InterfaceLVDS
Pin Number40pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
