10.4 Inch 1024x100 IPS Sunlight Readable

Specifications:

Part Number	NTD-10.4S1024100R100G
Size	10.1 inch
Resolution	1024xRGBx100
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	229.8(W)x149(H)x5.9(T) mm
Active Area	216.96(W)x135.6(H) mm
Supply Voltage	3.3 V
Luminance	950cd/m² (typ.)
Interface	RGB
Pin Number	40 pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~85℃

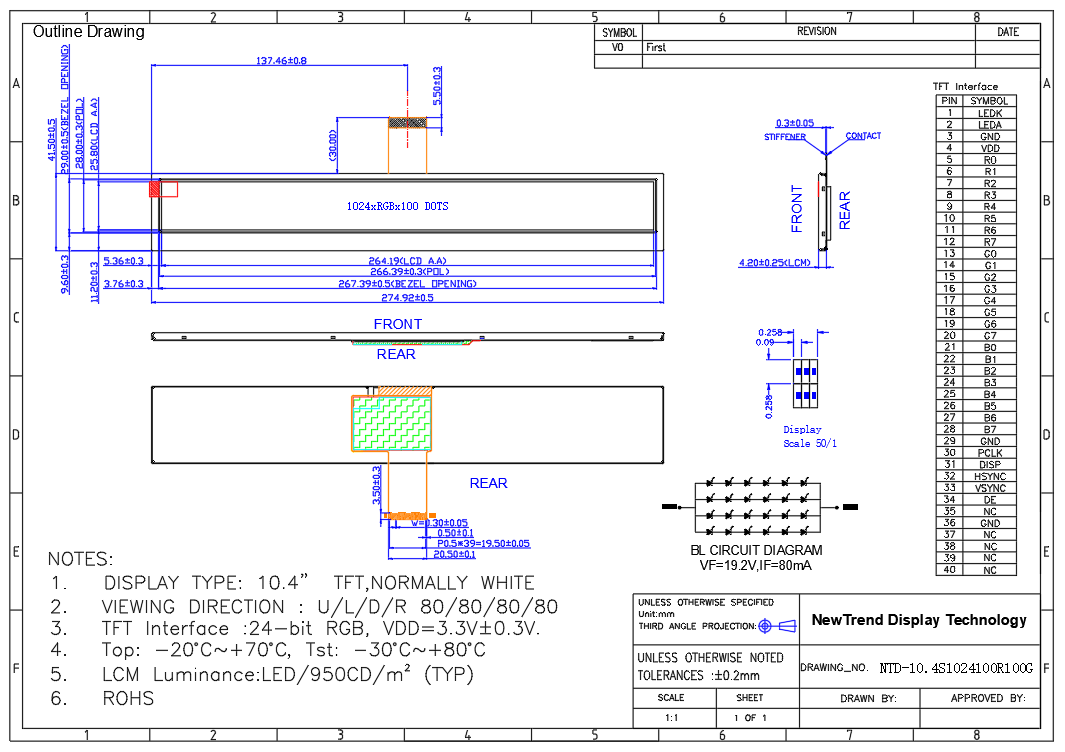

Dimension:
