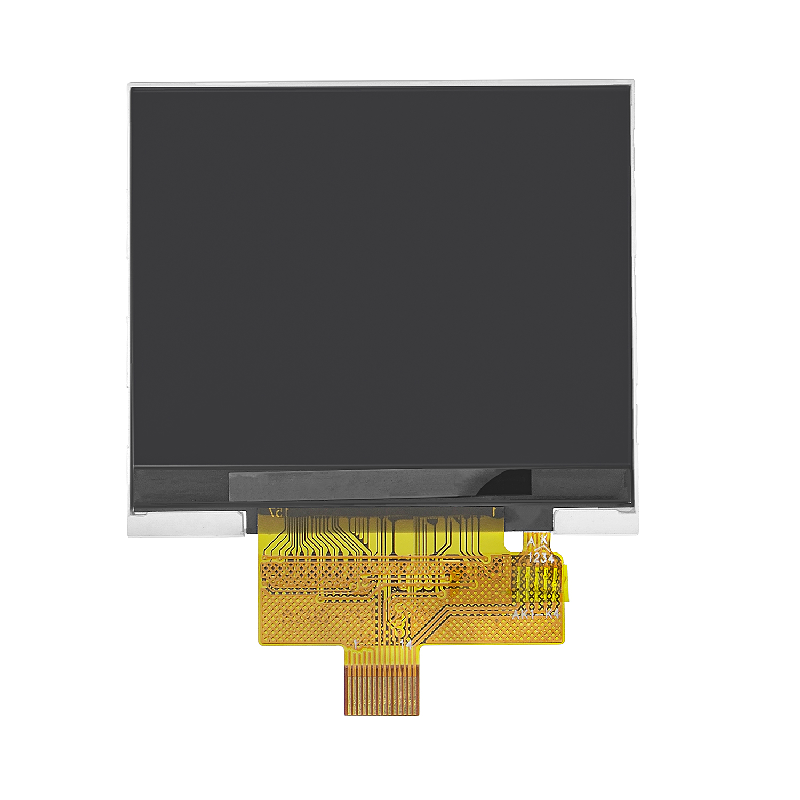

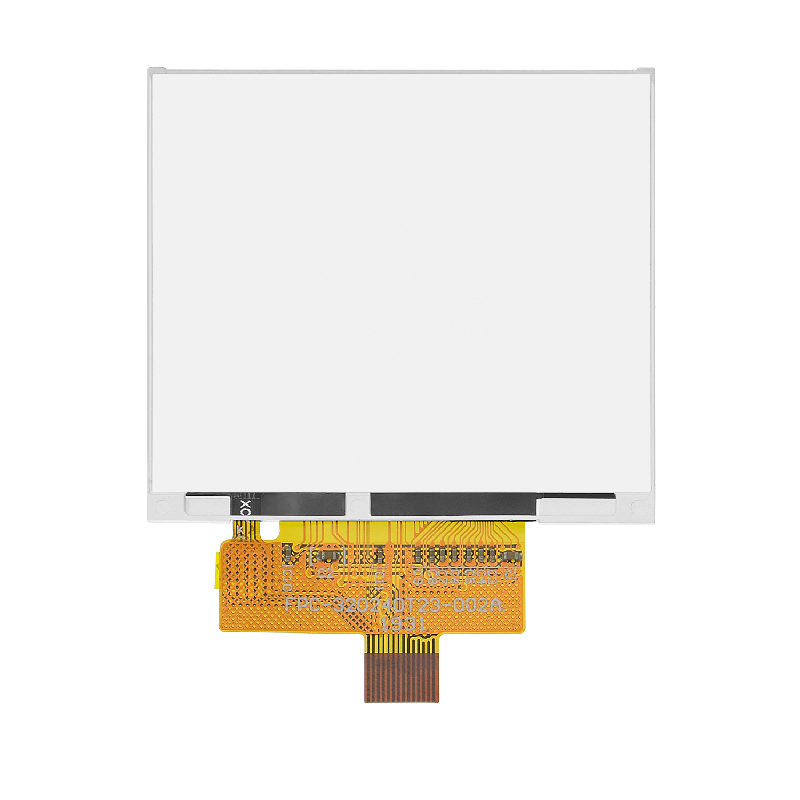

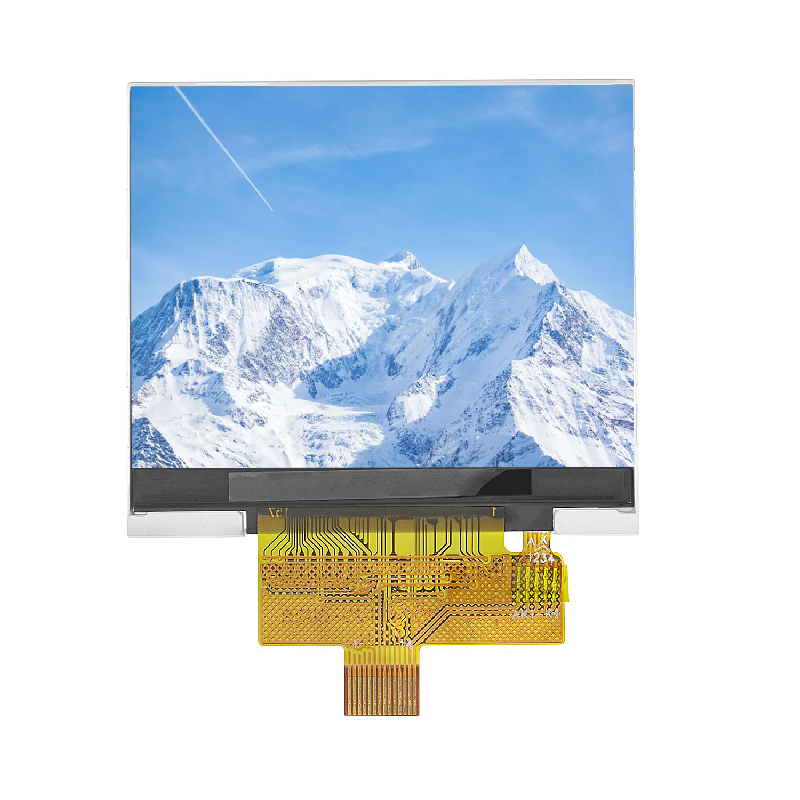

2.31 Inch 320x240 Standard TFT SPI Interface Display

  • Model: NTD-2.31T320240M100B
  • 2.31 inch Diagonal
  • 320xRGBx240 resolution
  • SPI interface
  • LED Blacklight (300cd/㎡)
  • 12:00 O’clock Optimal View
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-2.31T320240M100B
Size2.31 inch
Resolution320xRGBx240
Display TypeTN(Normally White), Transmissive TFT
Optimal View12 o'clock
TouchscreenNone
Outline50.9(W)x45.8(H)x2.45(T) mm
Active Area46.75(W)x35.06(H) mm
Supply Voltage2.8V
Luminance300cd/m² (typ.)
InterfaceSPI
Pin Number14pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
