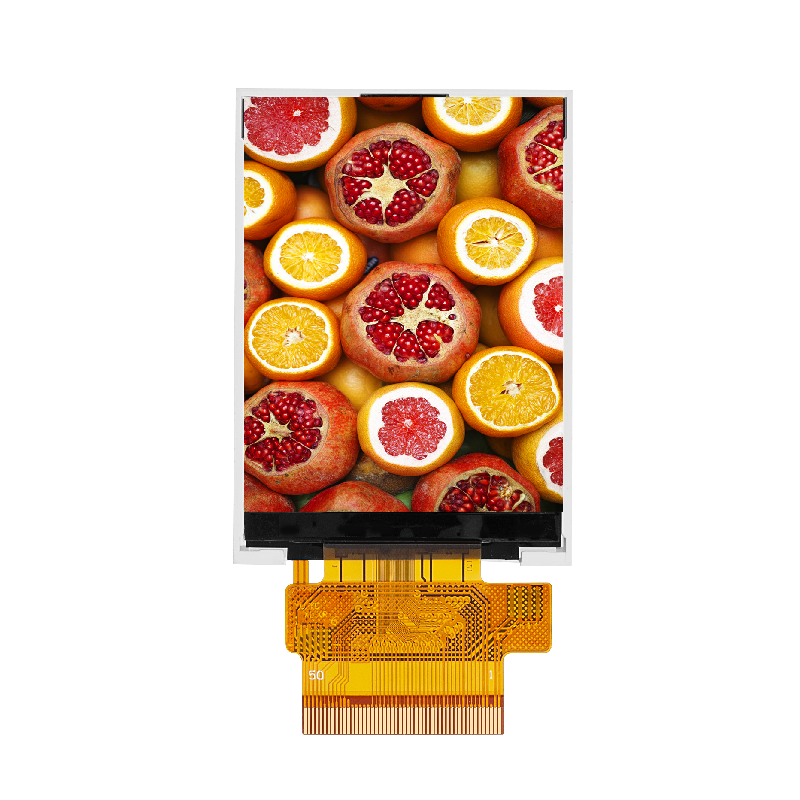

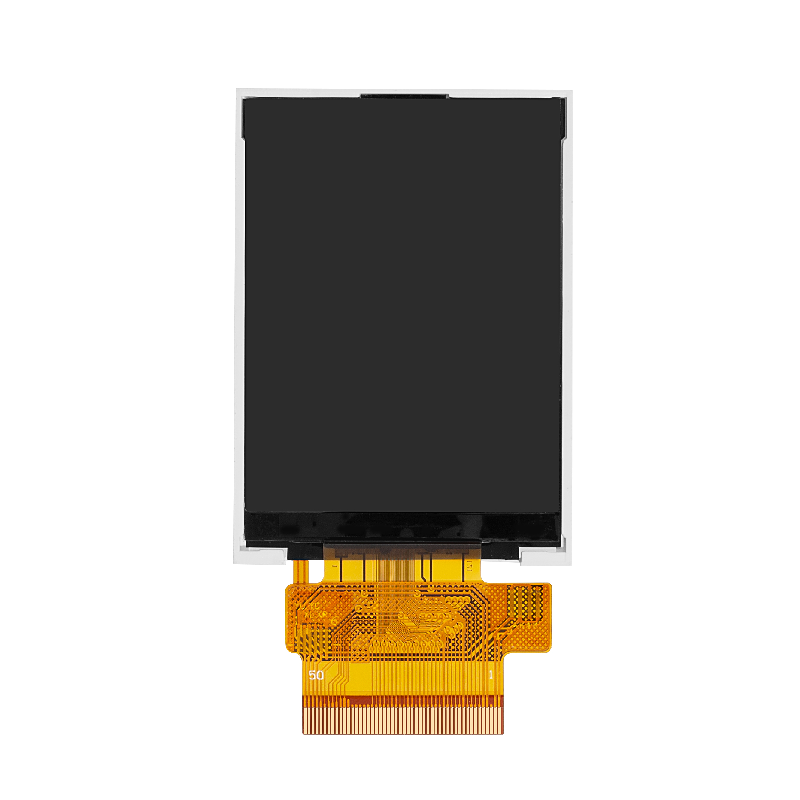

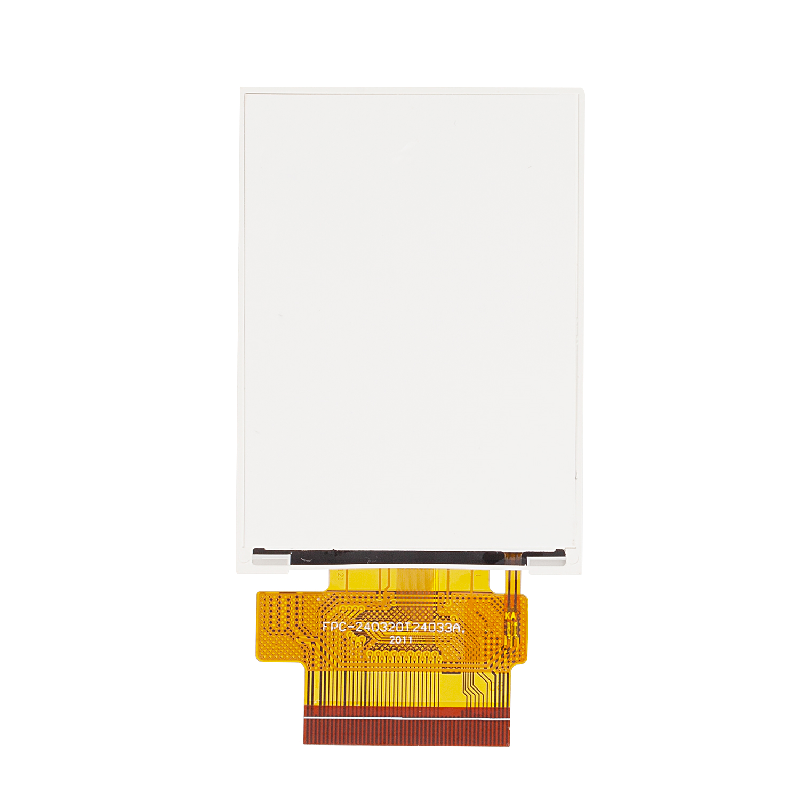

2.4 Inch 240x320 IPS TFT MCU Interface Display

Model: NTD-2.4S240320M100C
2.4 inch Diagonal
240xRGBx320 resolution
Interface:
i80-system 8/16/18-bit MCU interface
3SPI/4SPI/ 16/18-bit RGB interface
LED Blacklight (400cd/㎡)
Normally Black
Wide Viewing Angles
RoHS Compliant

Specifications:

Part Number	NTD-2.4S240320M100C
Size	2.4 inch
Resolution	240xRGBx320
Display Type	IPS(Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	42.72(W)x60.26(H)x2.4(T) mm
Active Area	36.72(W)x48.96(H) mm
Supply Voltage	2.8V
Luminance	400cd/m² (typ.)
Interface	MCU/SPI RGB
Pin Number	50pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
