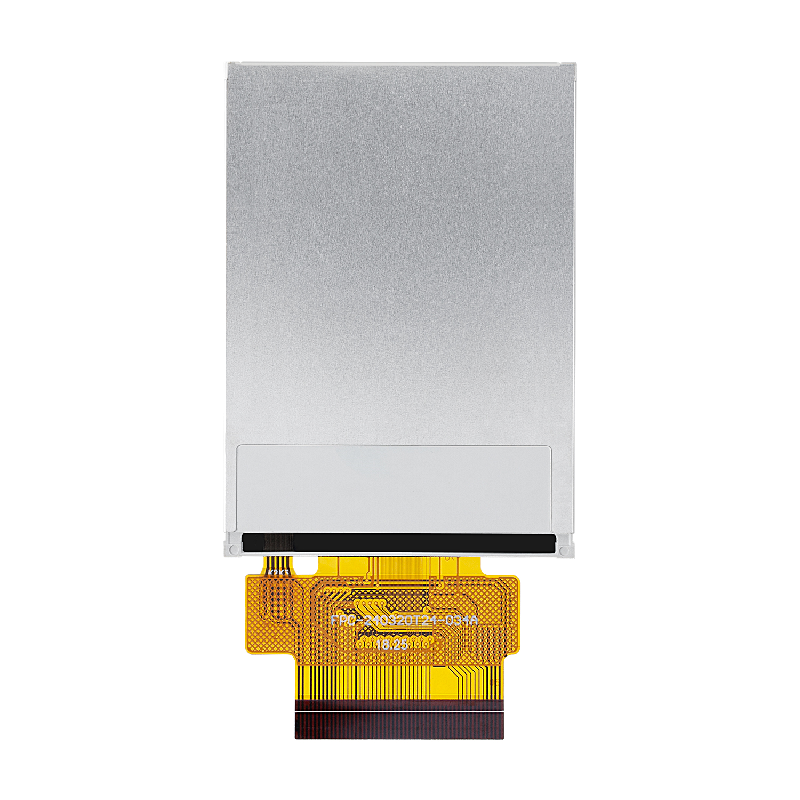

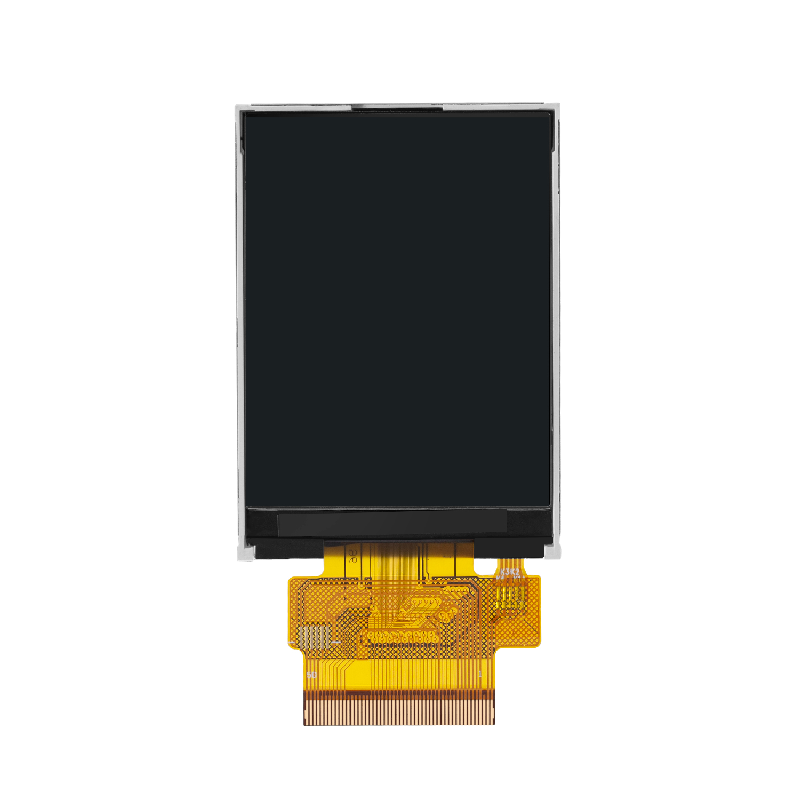

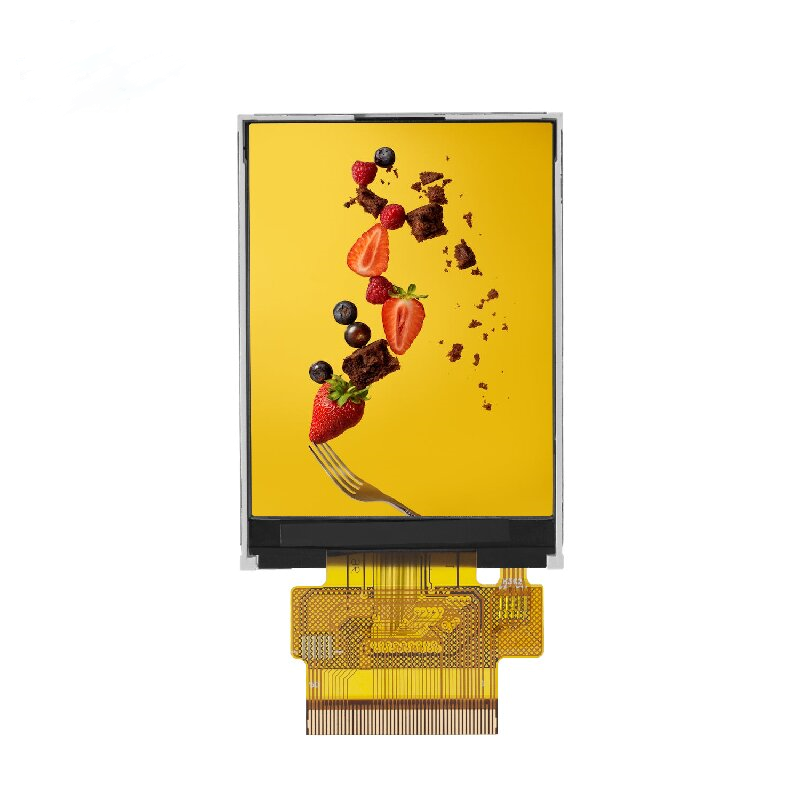

2.4 Inch 240x320 Standard TFT MCU Interface Display

  • Model: NTD-2.4T240320M100A
  • 2.4 inch Diagonal
  • 240xRGBx320 resolution
  • MCU/SPI/RGB interface
  • LED Blacklight (250cd/㎡)
  • 6:00 O’clock Optimal View
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-2.4T240320M100A
Size2.4 inch
Resolution240xRGBx320
Display TypeTN(Normally White), Transmissive TFT
Optimal View6 o'clock
TouchscreenNone
Outline42.72(W)x60.26(H)x2.4(T) mm
Active Area36.72(W)x48.96(H) mm
Supply Voltage2.8V
Luminance250cd/m² (typ.)
InterfaceMCU/SPI/RGB
Pin Number50pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
