2.8 Inch 240x320 IPS TFT MCU Interface Display

Model: NTD-2.8S240320M100A
2.8 inch Diagonal
240xRGBx320 resolution
Interface:
i80-system 8/16/18-bit MCU interface
3SPI/4SPI/ 16/18-bit RGB interface
LED Blacklight (250cd/㎡)
Normally Black
Wide Viewing Angles
RoHS Compliant

Specifications:

Part Number	NTD-2.8S240320M100A
Size	2.8 inch
Resolution	240xRGBx320
Display Type	IPS(Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	None
Active Area	43.20(W)x57.60(H) mm
Supply Voltage	2.8V
Luminance	250cd/m² (typ.)
Interface	MCU/SPI RGB
Pin Number	50pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

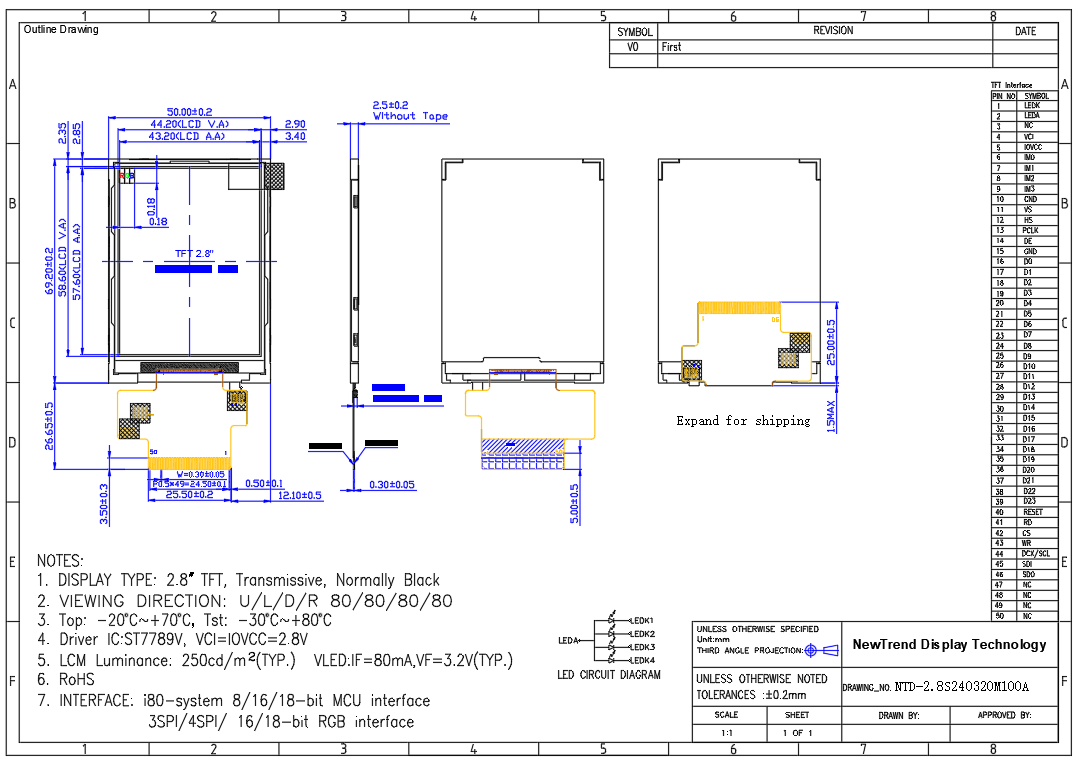

Product Specification
