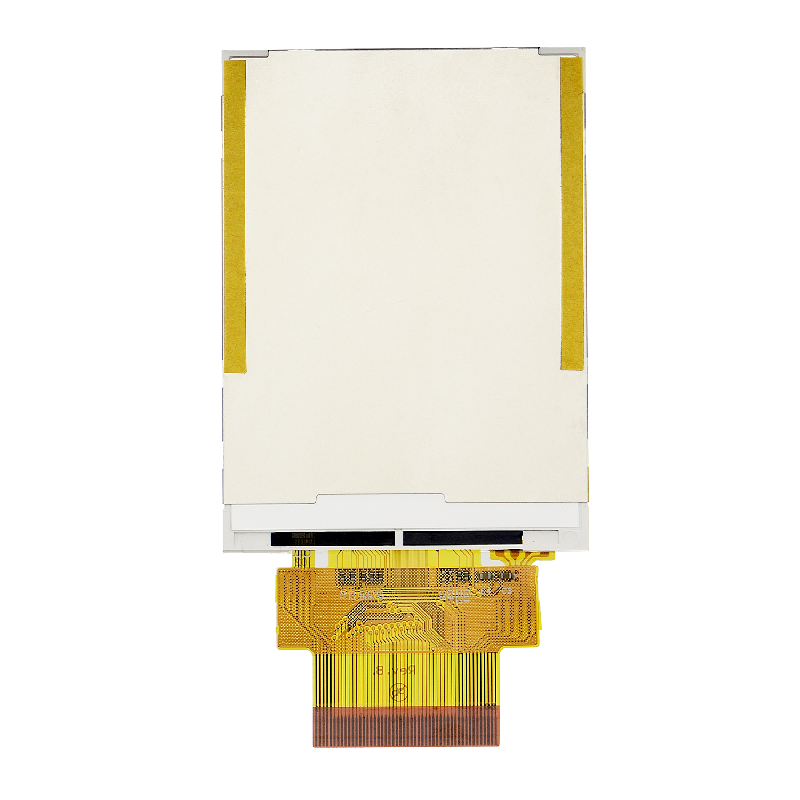

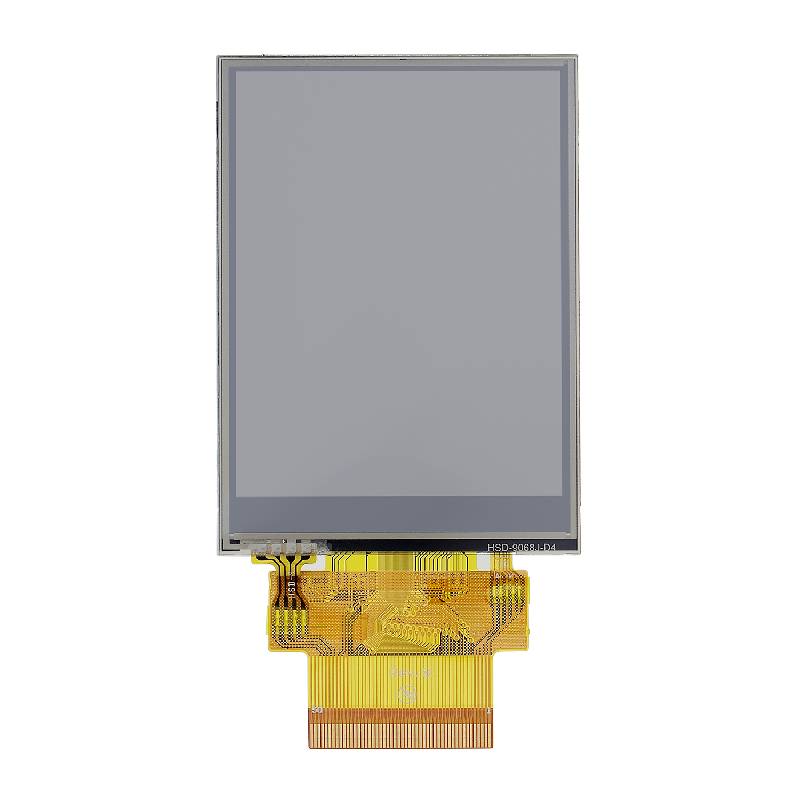

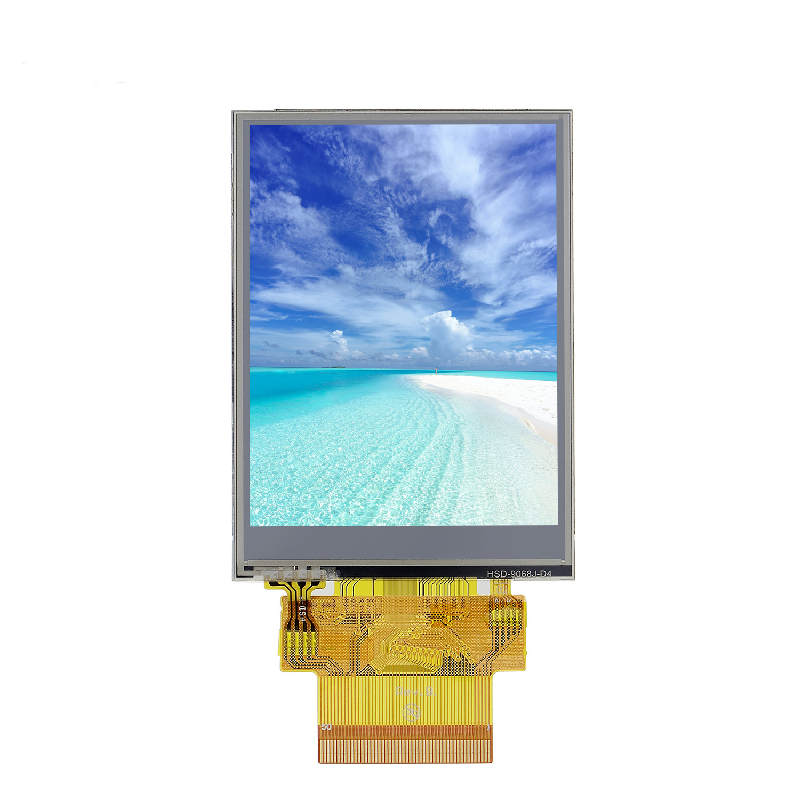

| Part Number | NTD-2.8T240320M100C-R |
| Size | 2.8 inch |
| Resolution | 240xRGBx320 |
| Display Type | TN(Normally White), Transmissive TFT |
| Optimal View | 6 o'clock |
| Touchscreen | 4-Wire Resistive |
| Outline | 50(W)x69.2(H)x2.5(T) mm |
| Active Area | 43.2(W)x57.6(H) mm |
| Supply Voltage | 2.8V |
| Luminance | 300cd/m² (typ.) |
| Interface | MCU/SPI |
| Pin Number | 50pins |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
