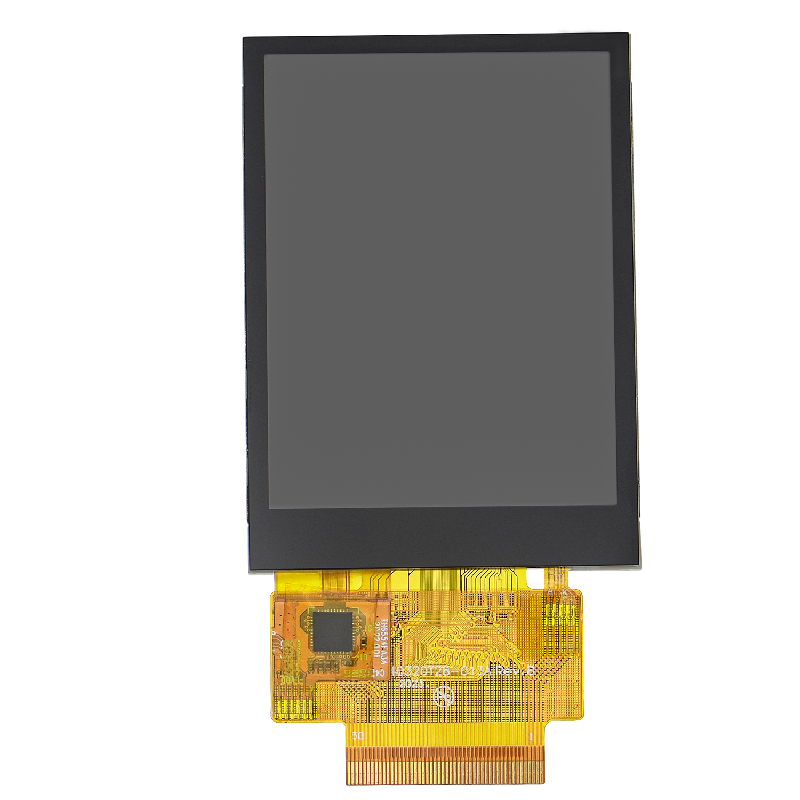

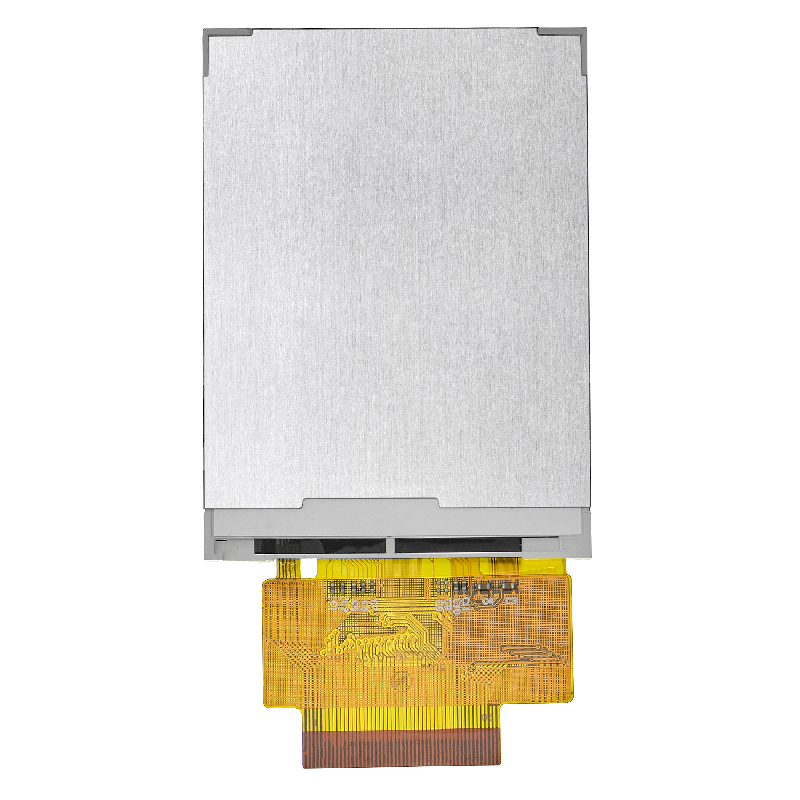

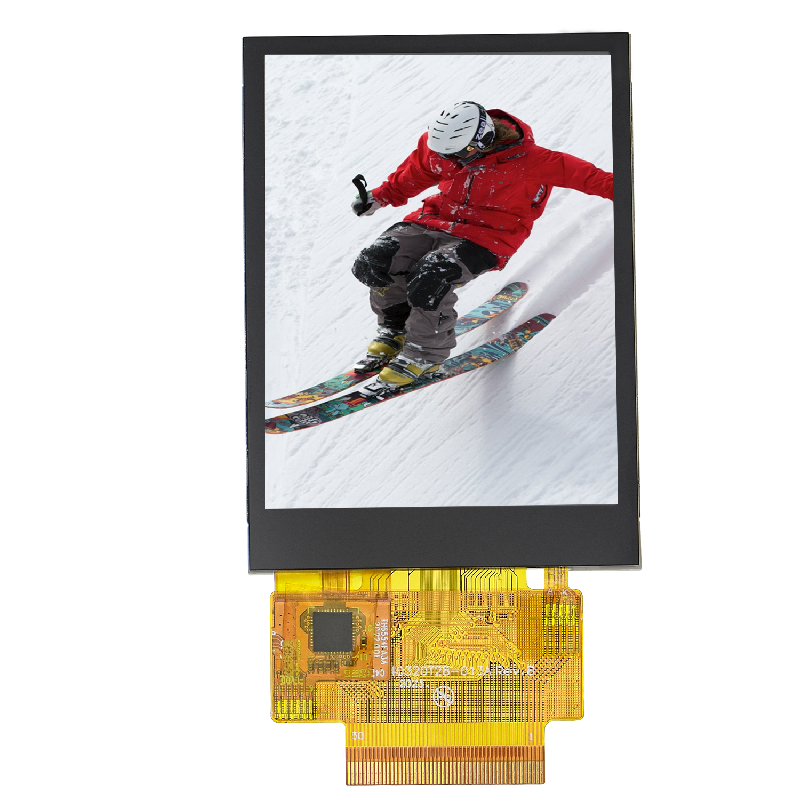

2.8 Inch 240x320 Standard Capacitive TFT Display

  • Model: NTD-2.8T240320M101B-C
  • 2.8 inch Diagonal
  • 240xRGBx320 resolution
  • MCU/SPI interface
  • LED Blacklight (200cd/㎡)
  • 6:00 O’clock Optimal View
  • With Capacitive Touch
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-2.8T240320M101B-C
Size2.8 inch
Resolution240xRGBx320
Display TypeTN(Normally White), Transmissive TFT
Optimal View6 o'clock
TouchscreenCapacitive with I2C Interface
Outline50(W)x69.2(H)x4(T) mm
Active Area43.2(W)x57.6(H) mm
Supply Voltage2.8V
Luminance200cd/m² (typ.)
InterfaceMCU/SPI
Pin Number50pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
