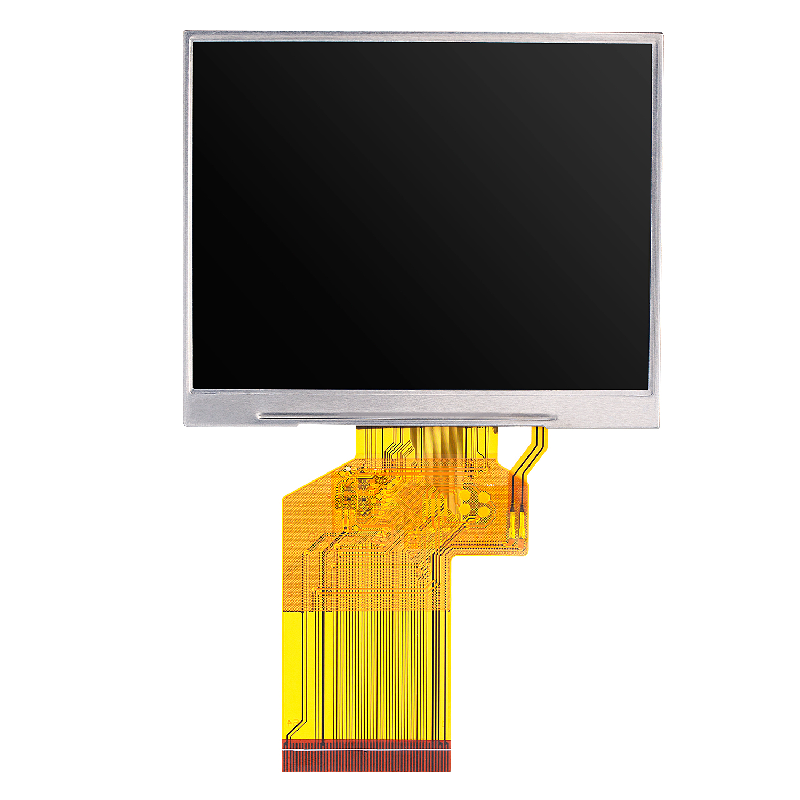

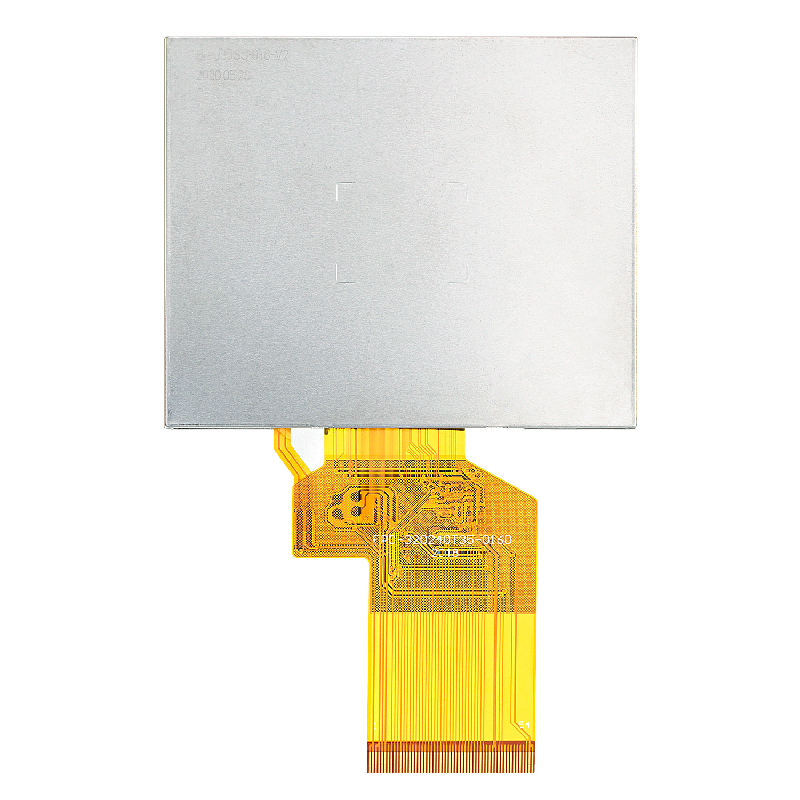

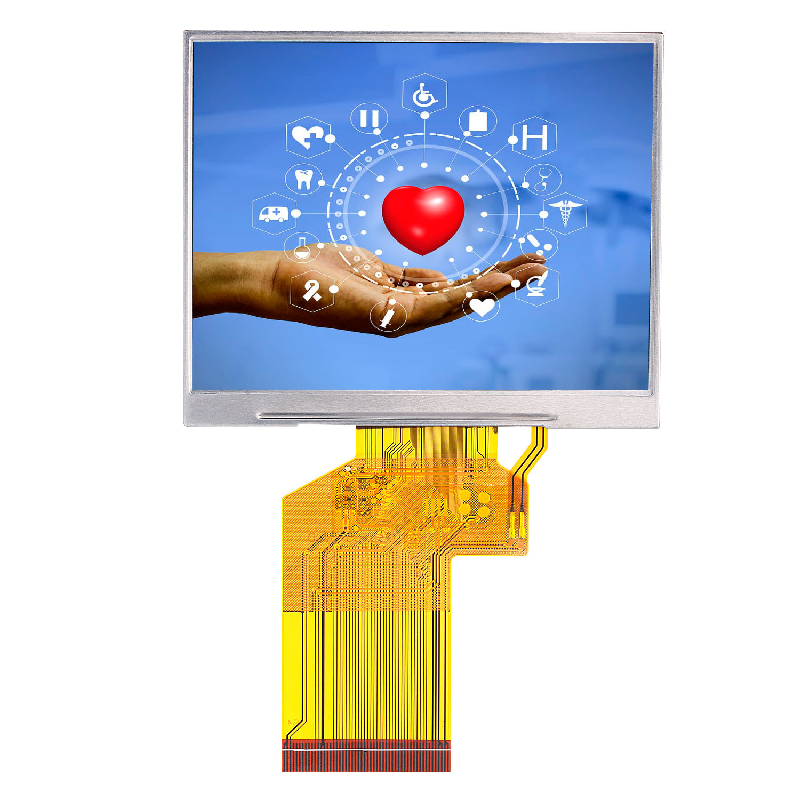

3.5 Inch 320x240 IPS TFT RGB Interface Display

Specifications:

Part Number	NTD-3.5S320240R100D
Size	3.5 inch
Resolution	320xRGBx240
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	76.84(W)x63.84(H)x3.27(T) mm
Active Area	70.08(W)x52.56(H) mm
Supply Voltage	3.3 V
Luminance	500cd/m² (typ.)
Interface	RGB
Pin Number	54 pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

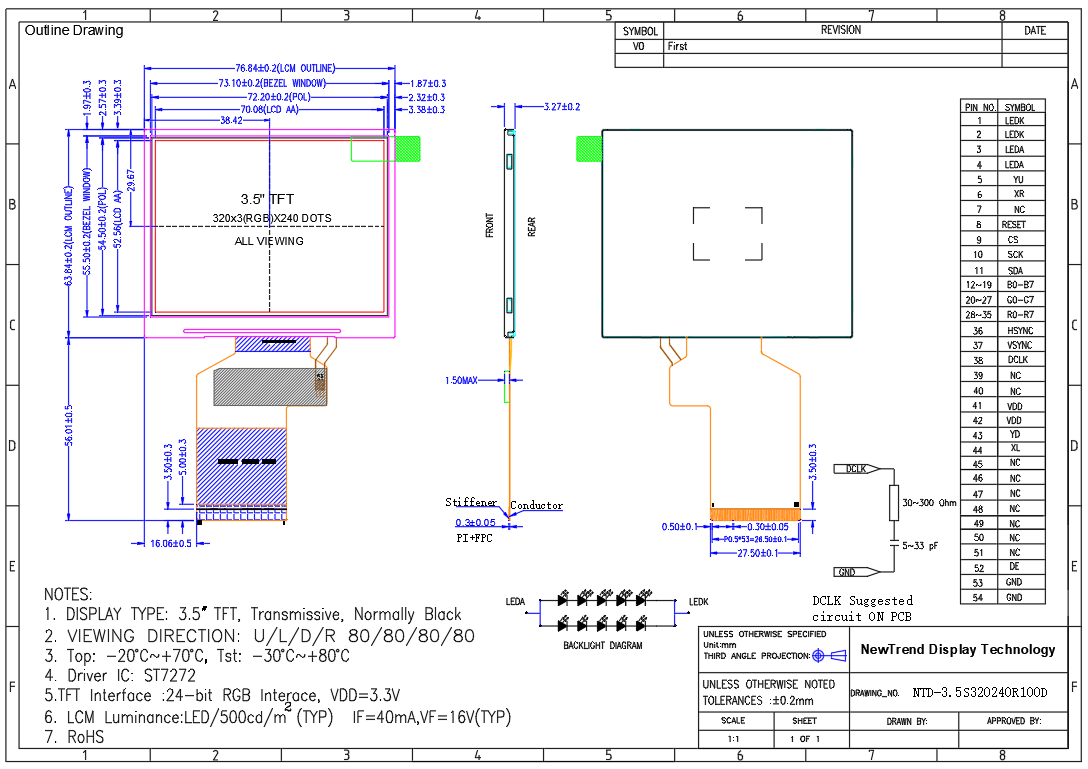

Dimension:
