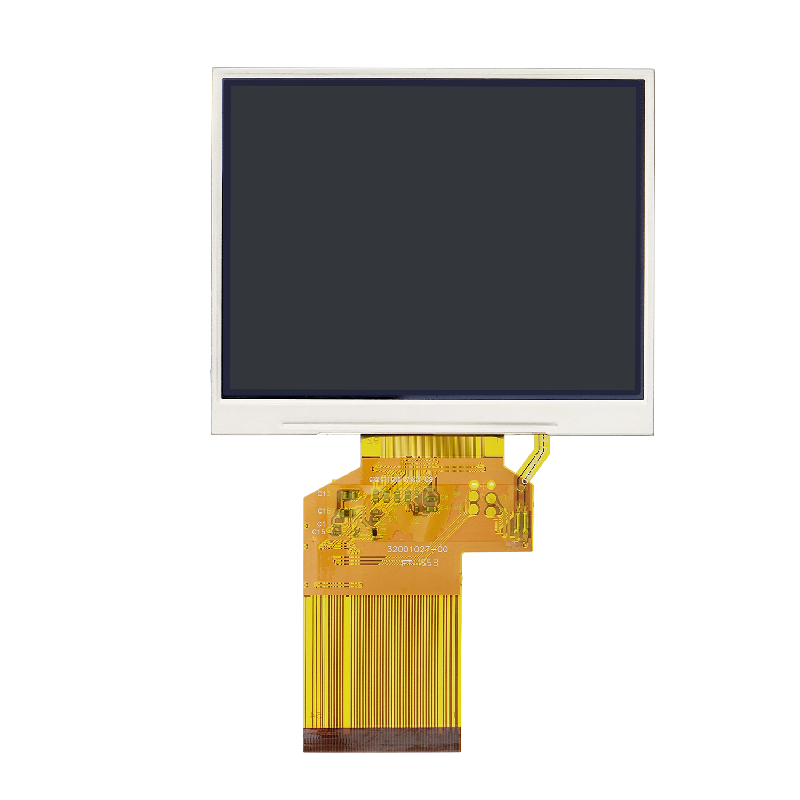

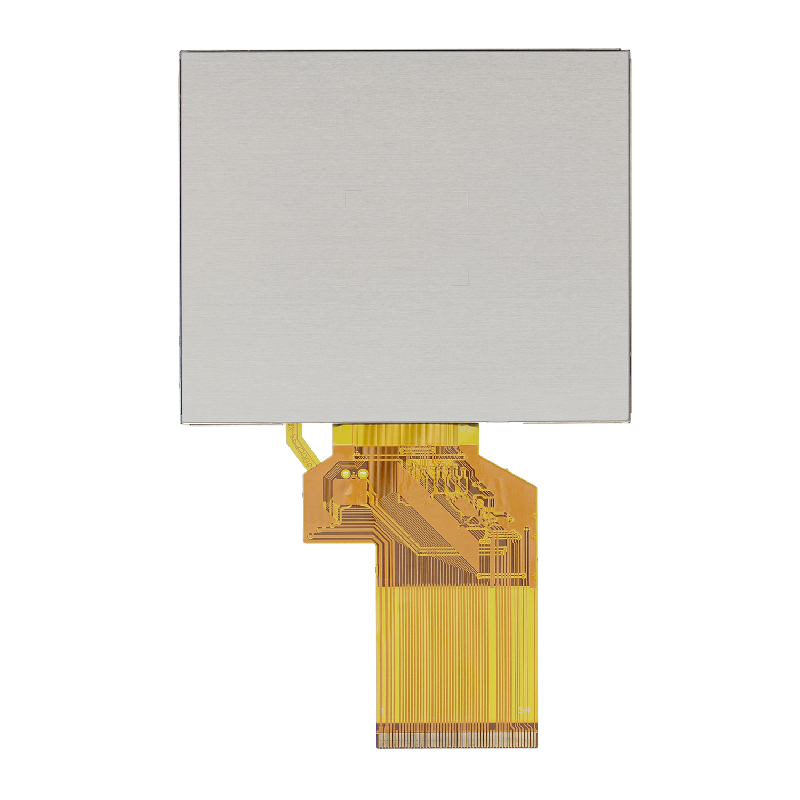

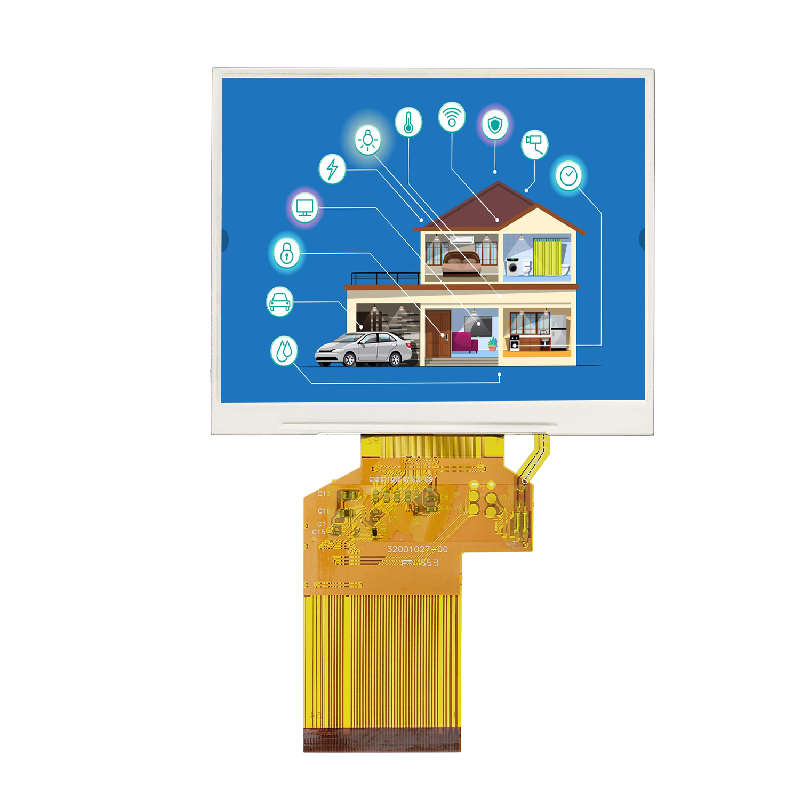

3.5 Inch 320x240 Standard TFT RGB Interface Display

  • Model: NTD-3.5T320240R100C
  • 3.5inch Diagonal
  • 320xRGBx240 resolution
  • 24bit RGB interface
  • LED Blacklight (400cd/㎡)
  • 16.7 M colors Normally White
  • 12:00 O’clock Optimal View
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-3.5T320240R100C
Size3.5 inch
Resolution320xRGBx240
Display TypeTN(Normally White), Transmissive TFT
Optimal View12 o'clock
TouchscreenNone
Outline76.90(W)x63.90(H)x3.26(T) mm
Active Area70.08(W)x52.56(H) mm
Supply Voltage3.3V
Luminance400cd/m² (typ.)
InterfaceRGB
Pin Number54pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃

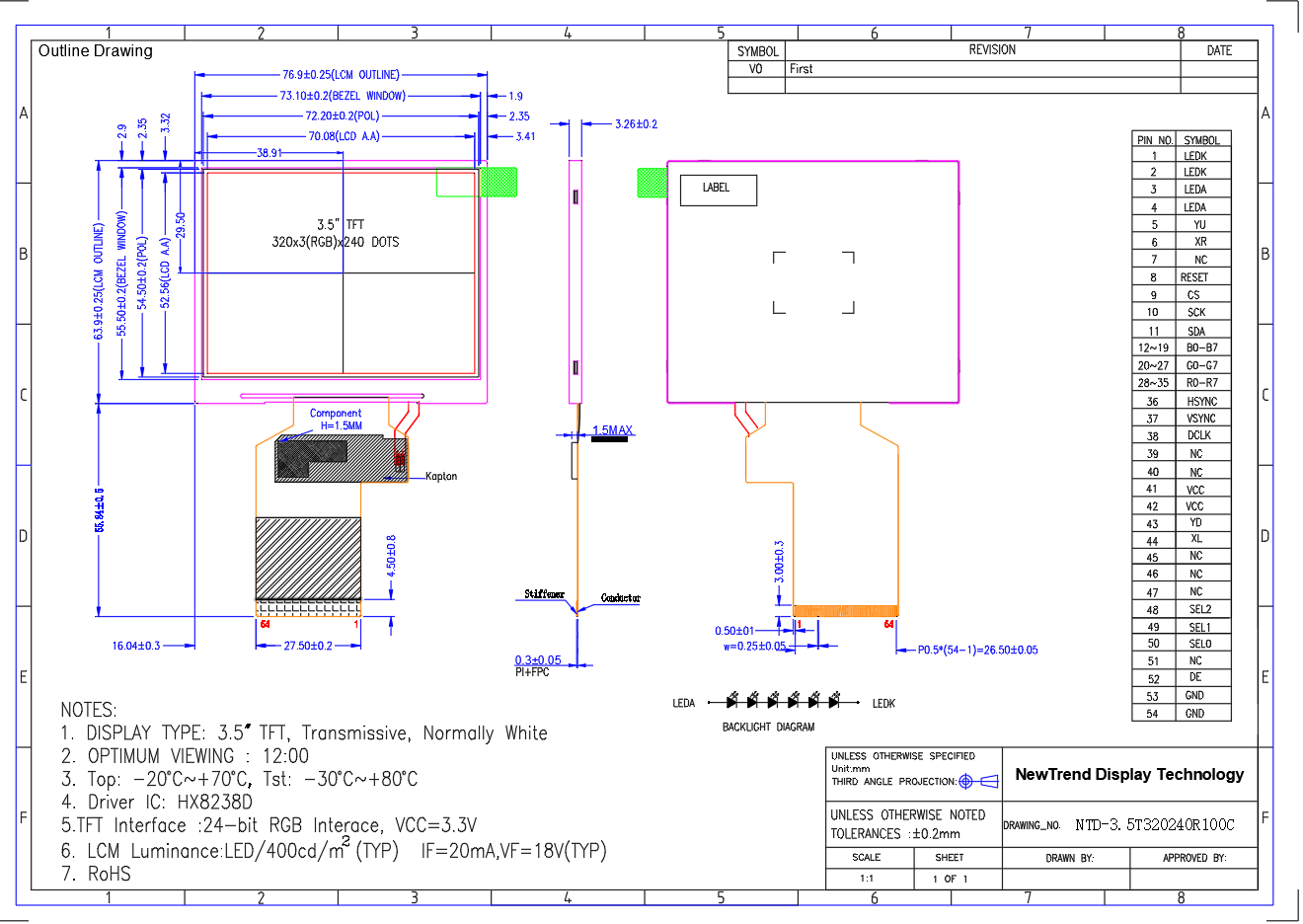

Dimension:

Product Specification
