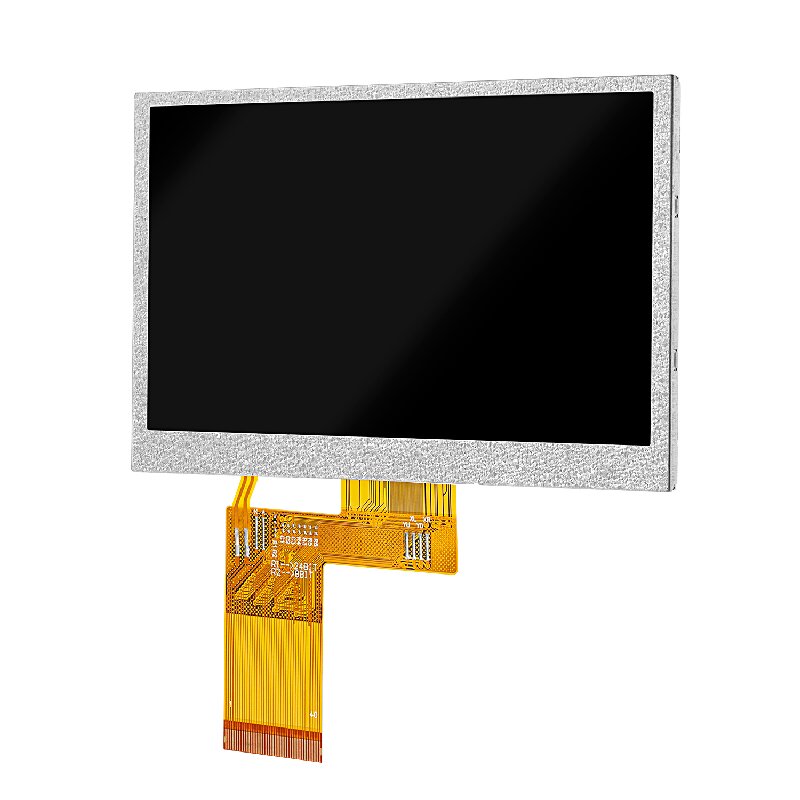

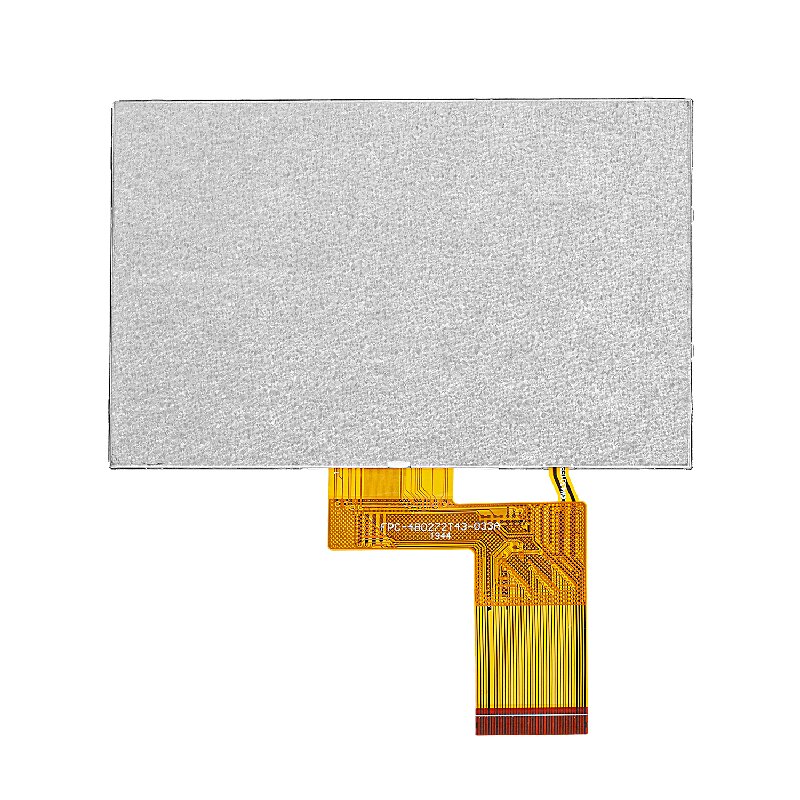

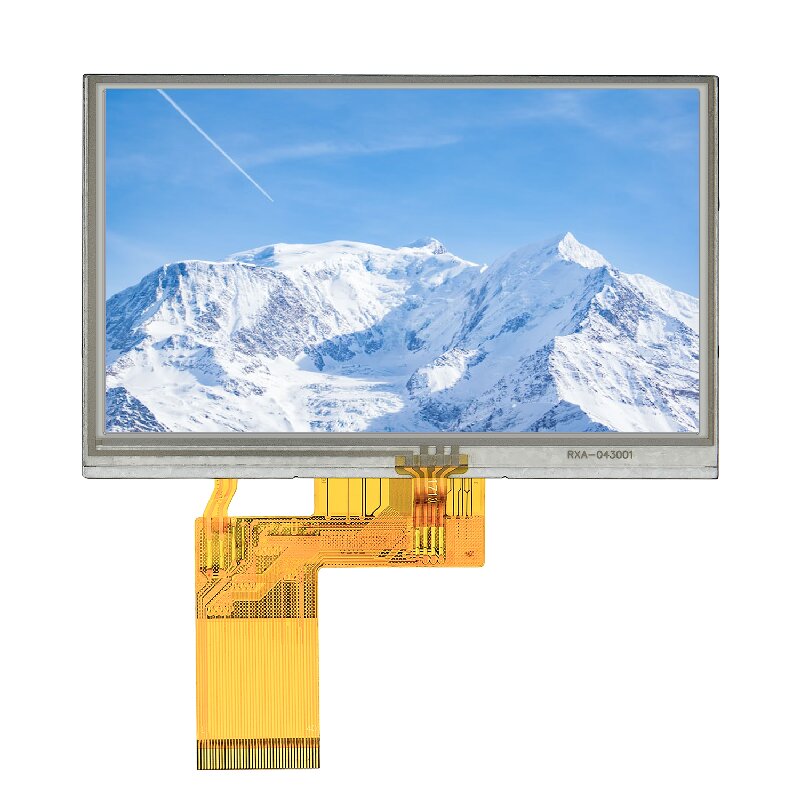

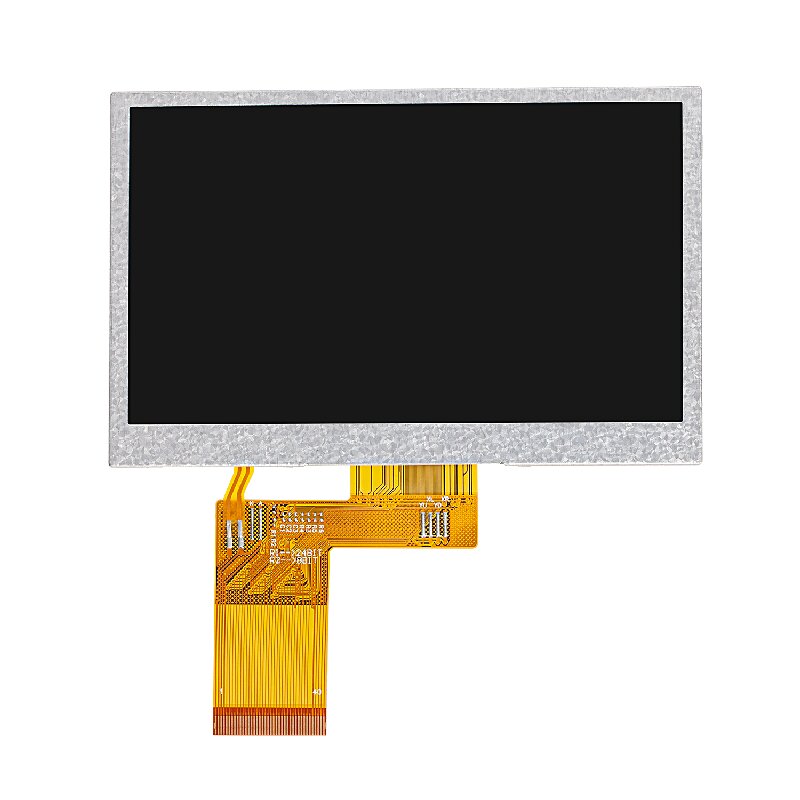

4.3 Inch 480x272 IPS TFT RGB Interface Display

Specifications:

Part Number	NTD-4.3S480272R100D
Size	4.3 inch
Resolution	480xRGBx272
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	105.5(W)x67.2(H)x3(T) mm
Active Area	95.04(W)x53.86(H) mm
Supply Voltage	3.3 V
Luminance	600cd/m² (typ.)
Interface	RGB
Pin Number	40 pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

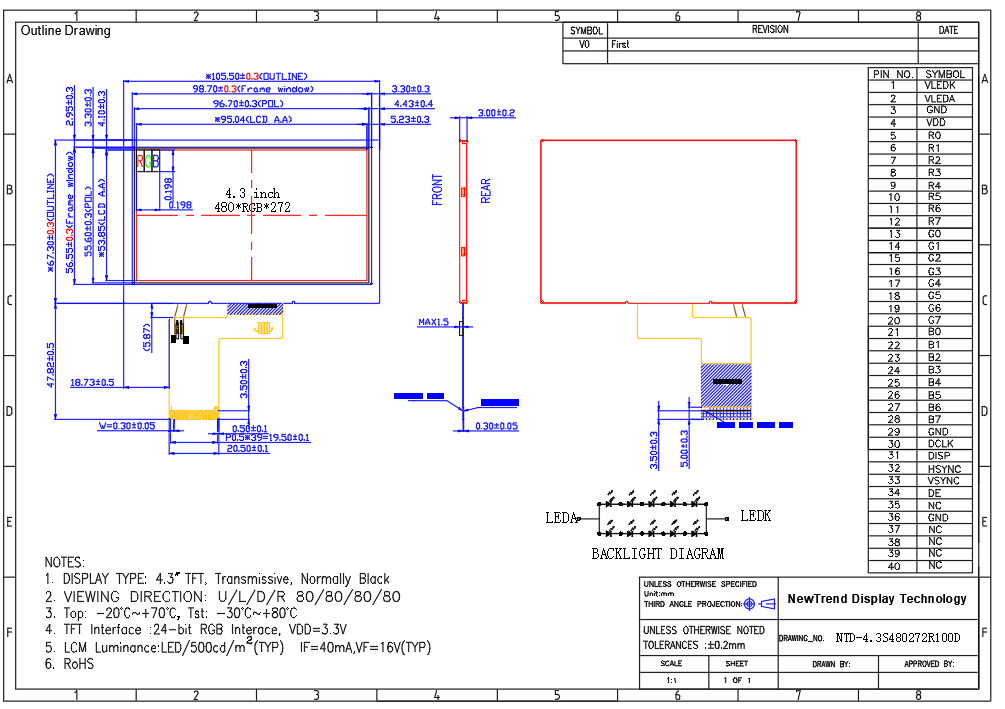

Dimension:
