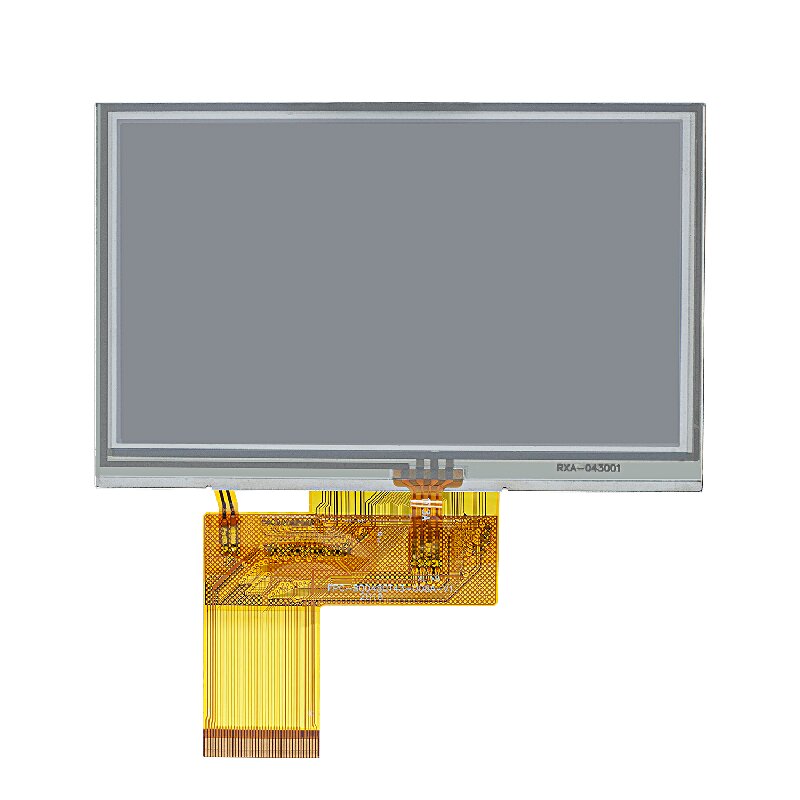

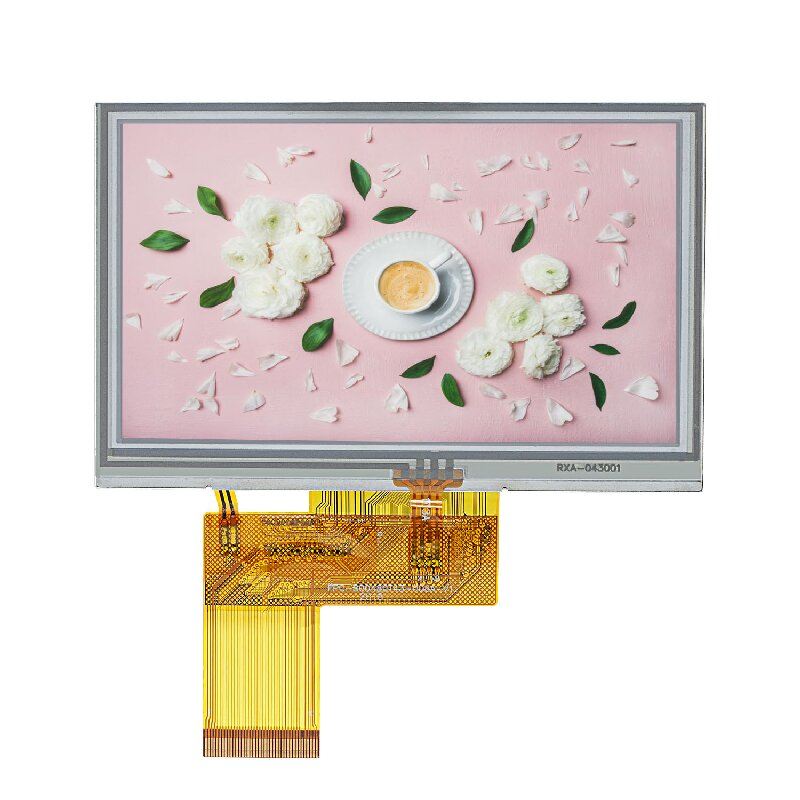

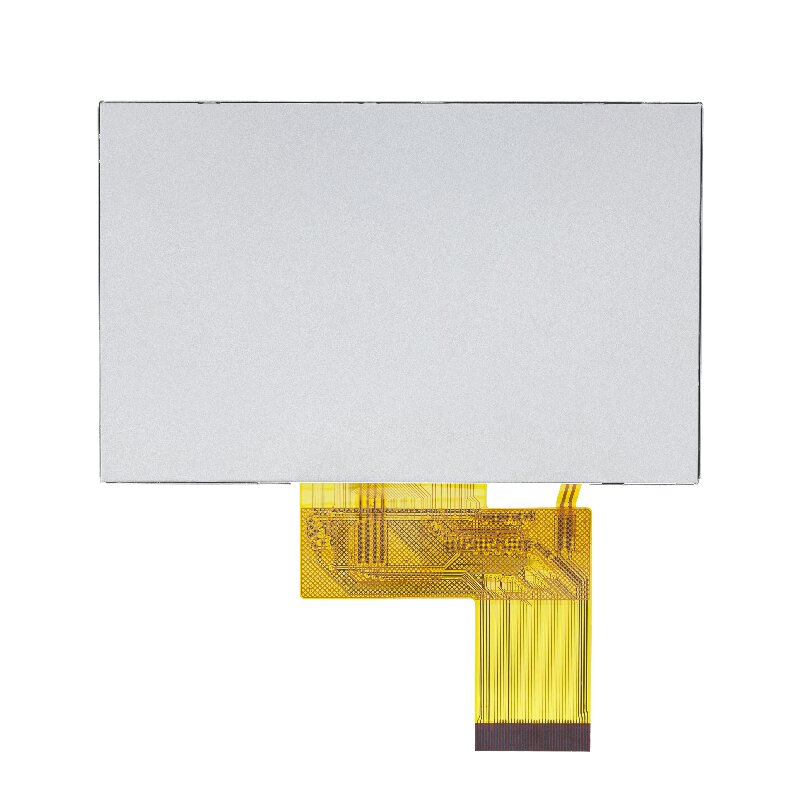

4.3 Inch 800x480 IPS Resistive TFT Display

  • Model: NTD-4.3S800480R100B-R
  • 4.3 inch Diagonal
  • 800xRGBx480 resolution
  • 24 bit RGB interface
  • LED Blacklight (250cd/㎡)
  • 16.7 M colors Normally Black
  • Wide Viewing Angles
  • RoHS Compliant

Specifications:


Part NumberNTD-4.3S800480R100B-R
Size4.3 inch
Resolution800xRGBx480
Display TypeIPS (Normally Black), Transmissive TFT
Optimal ViewFull View
Touchscreen4-Wire Resistive
Outline105.50(W)x67.20(H)x4.15(T) mm
Active Area95.04(W)x53.86(H) mm
Supply Voltage3.3 V
Luminance250cd/m² (typ.)
InterfaceRGB
Pin Number40 pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃

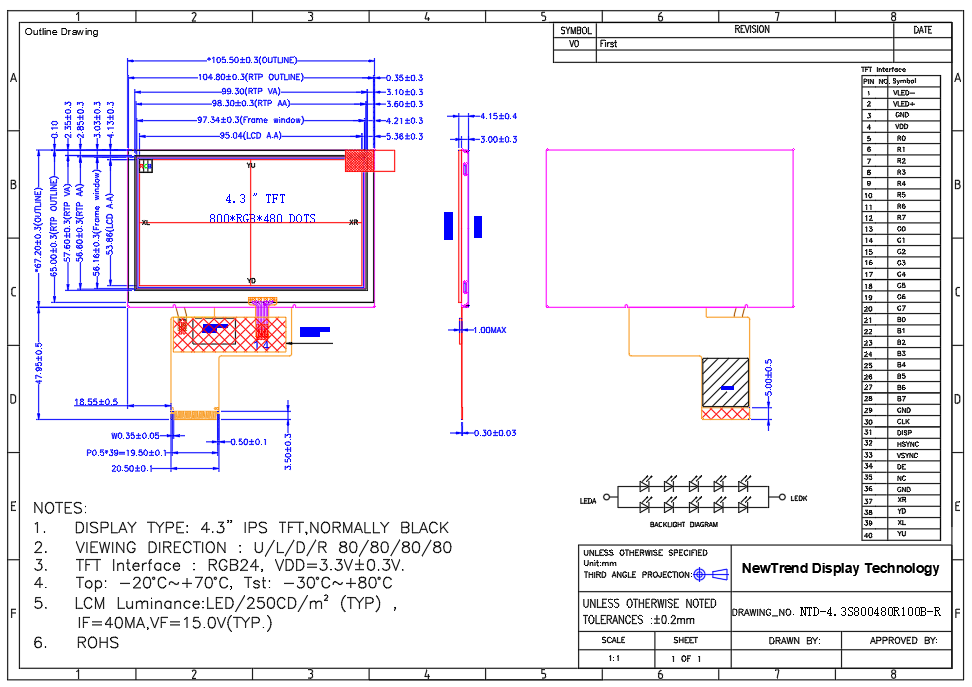

Dimension:

Product Specification
