4.3 Inch 800x480 IPS TFT RGB Interface Display

Specifications:

Part Number	NTD-4.3S800480R100B
Size	4.3 inch
Resolution	800xRGBx480
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	105.50(W)x67.20(H)x3.00(T) mm
Active Area	95.04(W)x53.86(H) mm
Supply Voltage	3.3 V
Luminance	350cd/m² (typ.)
Interface	RGB
Pin Number	40 pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

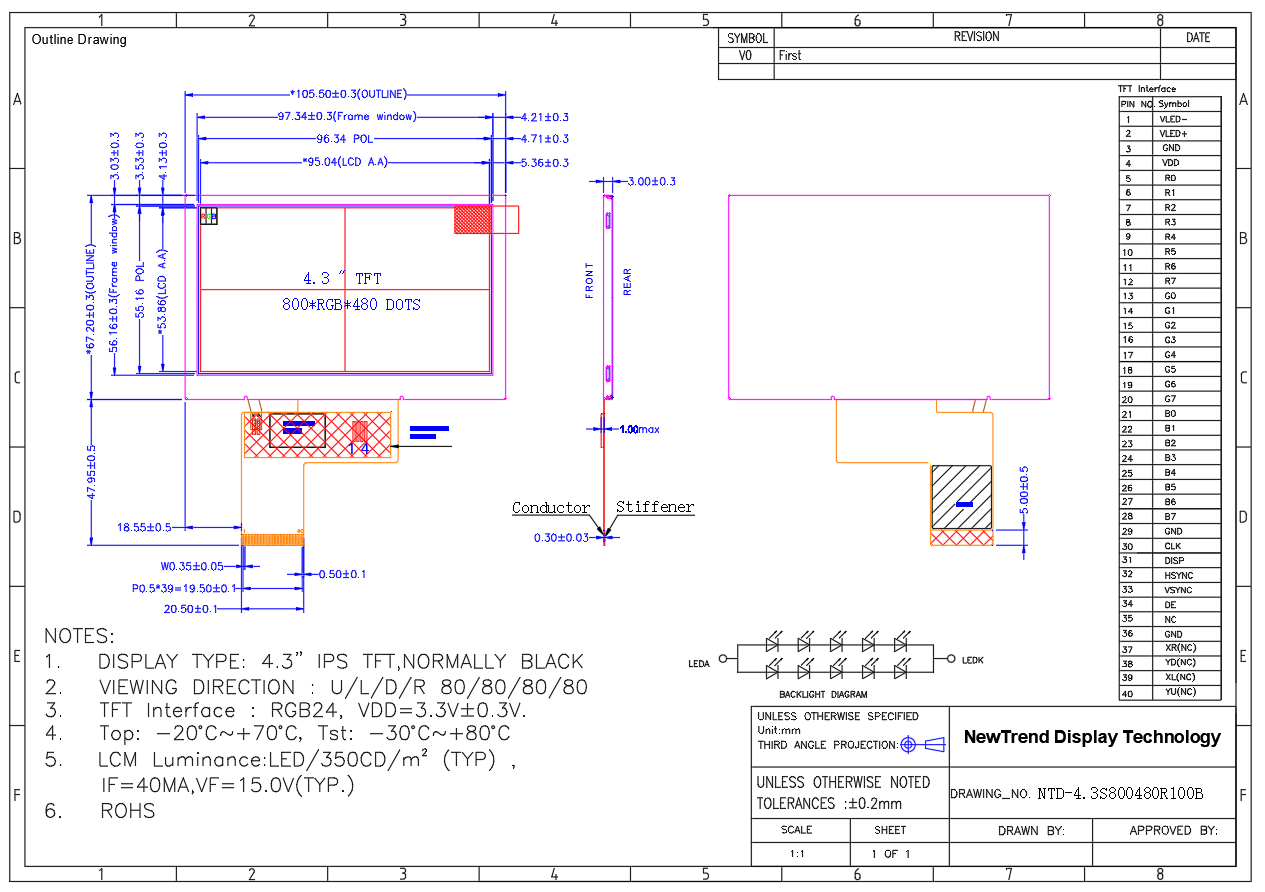

Dimension:
