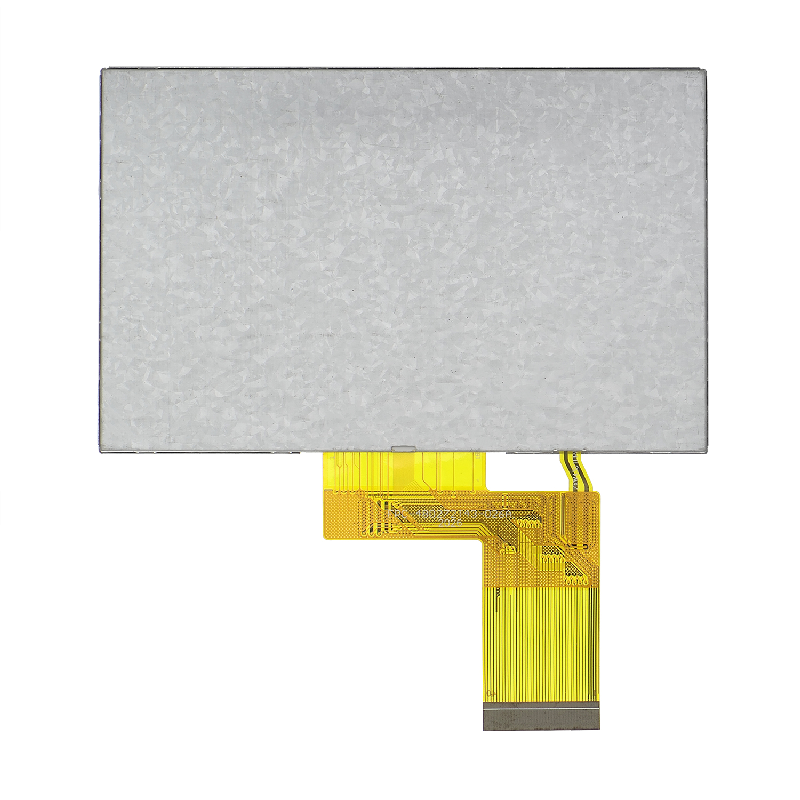

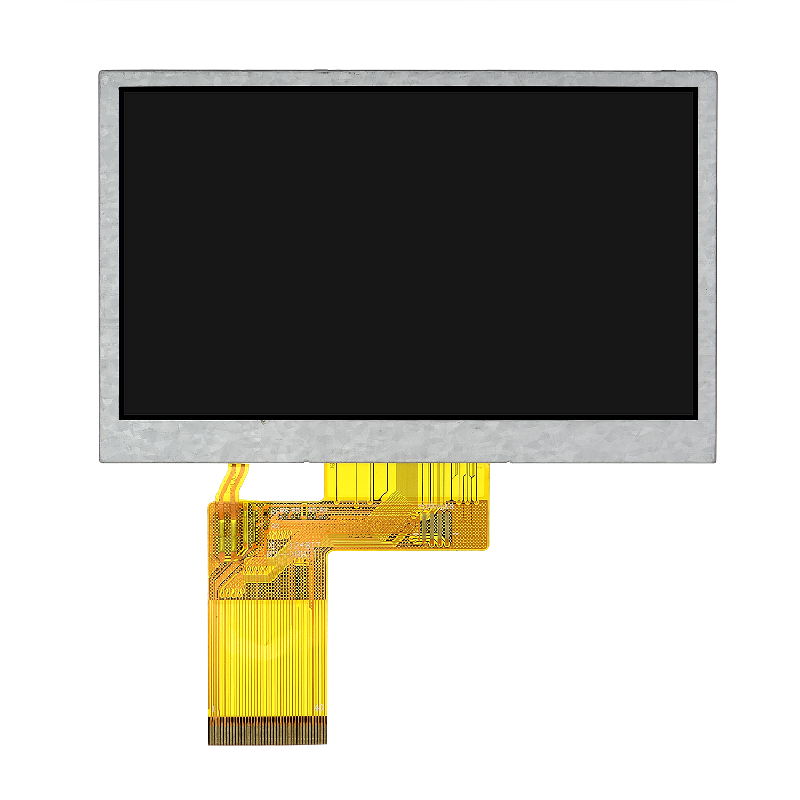

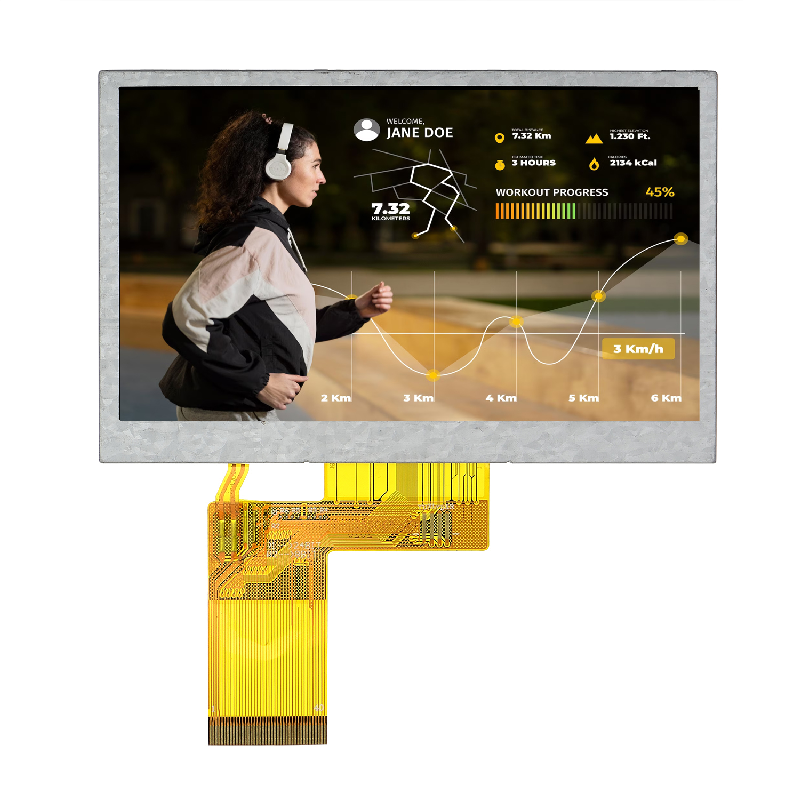

| Part Number | NTD-4.3T480272R100E |
| Size | 4.3 inch |
| Resolution | 480xRGBx272 |
| Display Type | TN(Normally White), Transmissive TFT |
| Optimal View | 12 o'clock |
| Touchscreen | None |

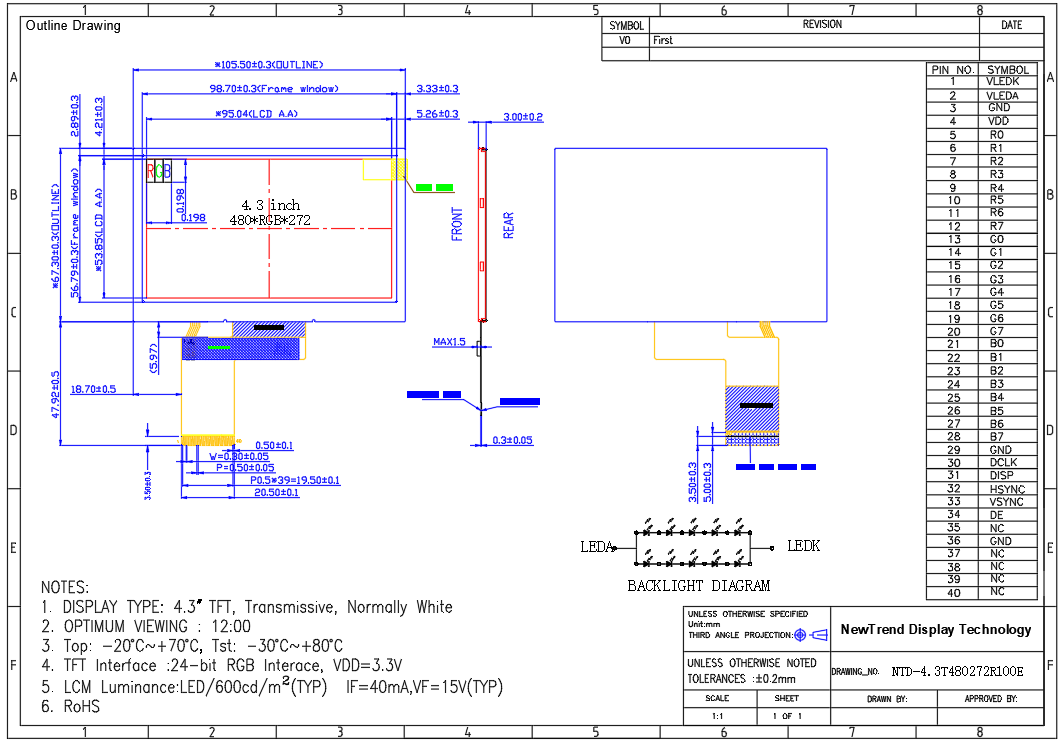

| Outline | 105.50(W)x67.30(H)x3.00(T) mm |
| Active Area | 95.04(W)x53.85(H) mm |
| Supply Voltage | 3.3V |
| Luminance | 600cd/m² (typ.) |
| Interface | RGB |
| Pin Number | 40pins |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
