5.0 Inch 800x480 IPS TFT RGB Interface Display

Specifications:

Part Number	NTD-5.0S800480R101D
Size	5.0 inch
Resolution	800xRGBx480
Display Type	IPS (Normally Black), Transmissive TFT
Optimal View	Full View
Touchscreen	None
Outline	120.90(W)x76.05(H)x2.95(T) mm
Active Area	108(W)x64.8(H) mm
Supply Voltage	3.3 V
Luminance	500cd/m² (typ.)
Interface	RGB
Pin Number	50 pins
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

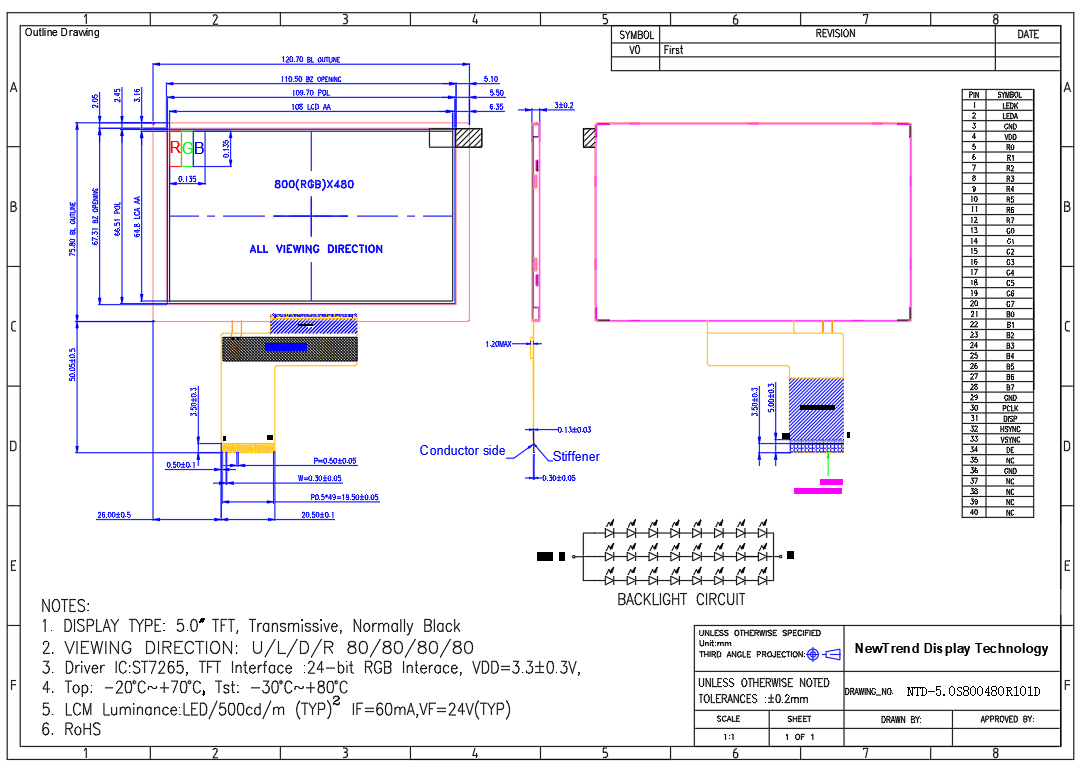

Dimension:
