| Part Number | NTD-5.0T800480R100D |
| Size | 5.0 inch |
| Resolution | 800xRGBx480 |
| Display Type | TN (Normally White), Transmissive TFT |
| Optimal View | 12 o'clock |
| Touchscreen | None |

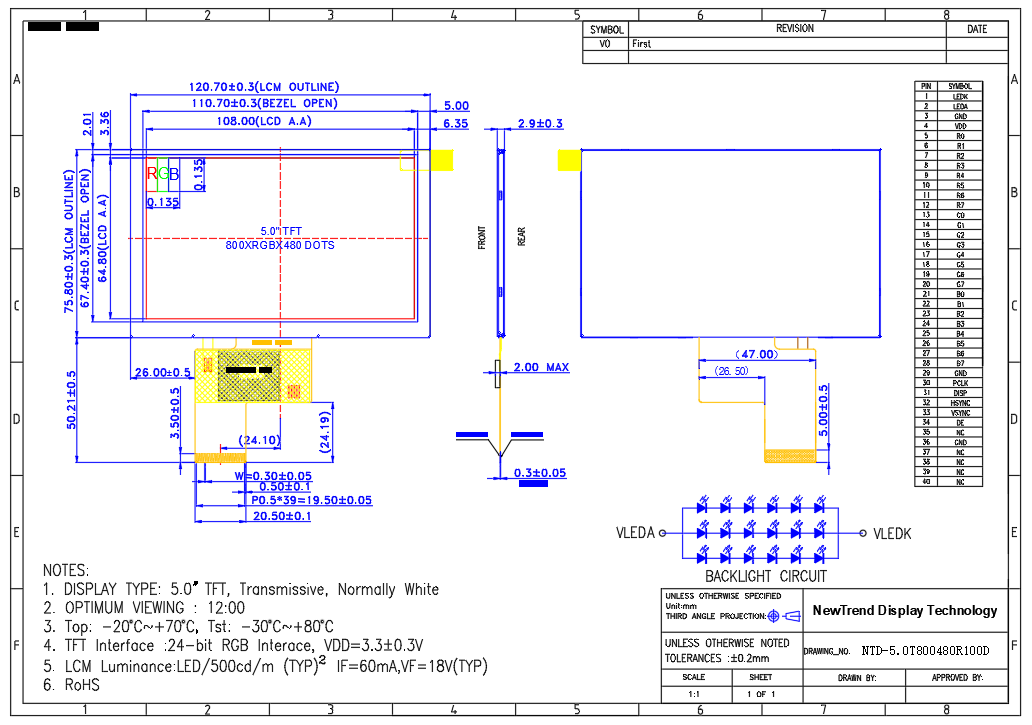

| Outline | 120.7(W)x75.8(H)x2.9(T) mm |
| Active Area | 108(W)x64.8(H) mm |
| Supply Voltage | 3.3V |
| Luminance | 500cd/m² (typ.) |
| Interface | RGB |
| Pin Number | 40pins |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
