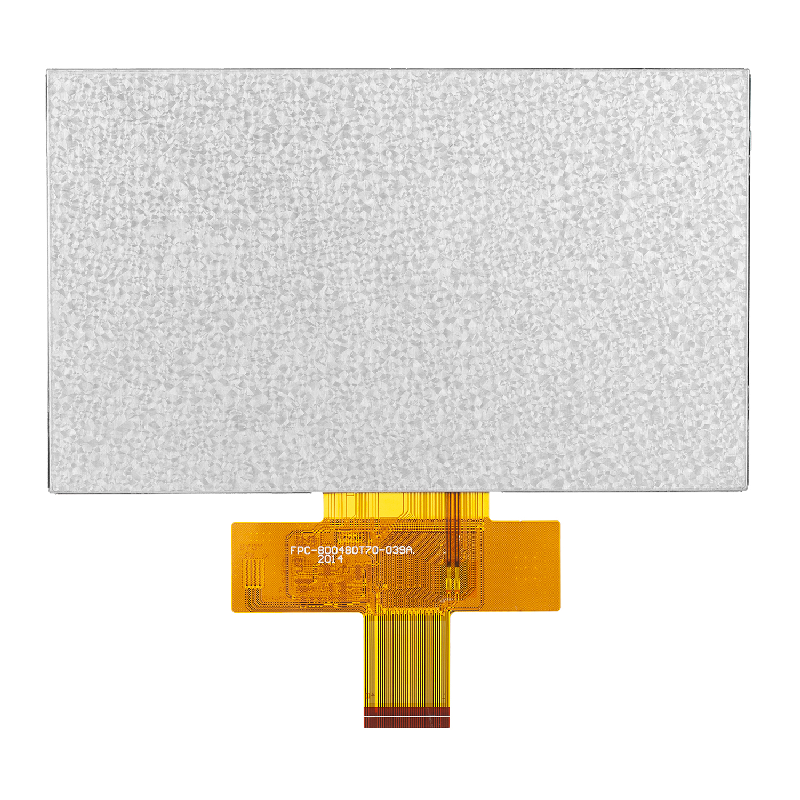

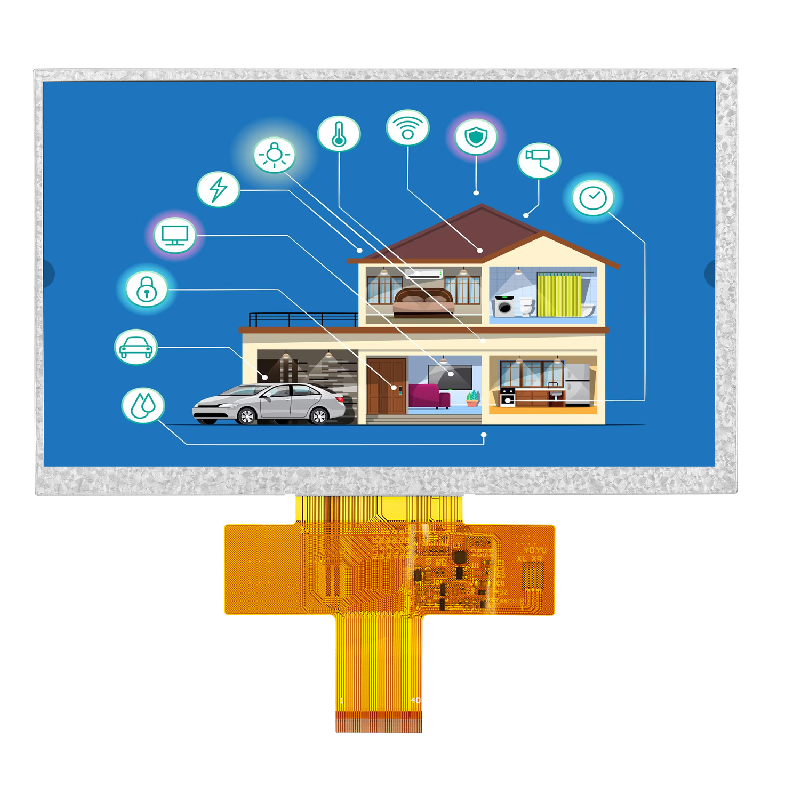

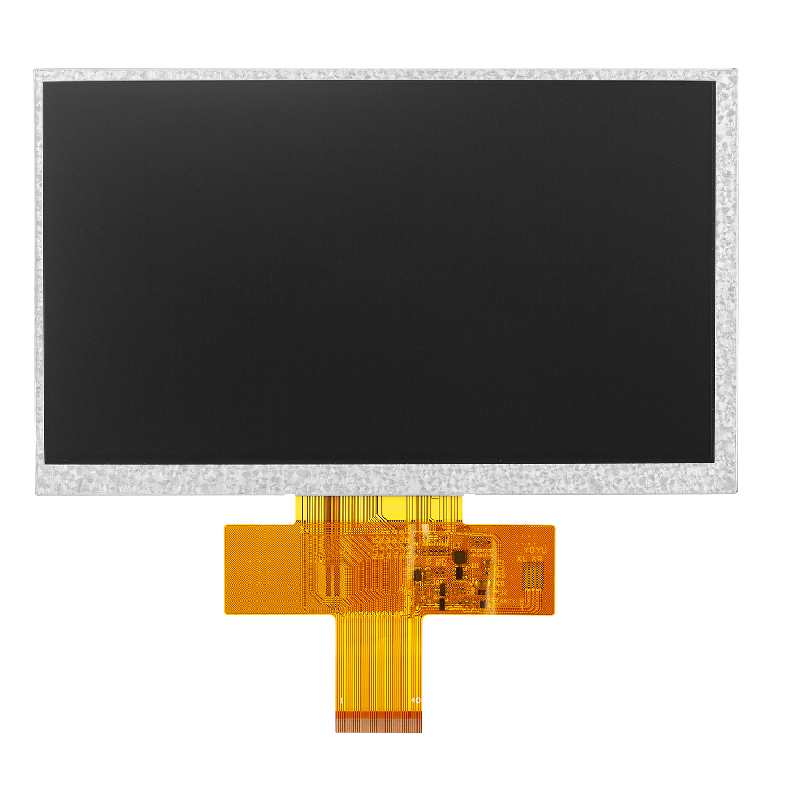

7.0 Inch 800x480 Standard TFT RGB Interface Build-in Boost Display

  • Model: NTD-7.0T800480R120D
  • 7.0 inch Diagonal
  • 800xRGBx480 resolution
  • 24 bit RGB interface
  • LED Blacklight (500cd/㎡)
  • 16.7 M colors Normally White
  • 12:00 O’clock Optimal View
  • RoHS Compliant
PDF Download

Specifications:


Part NumberNTD-7.0T800480R120D
Size7.0 inch
Resolution800xRGBx480
Display TypeTN(Normally White), Transmissive TFT
Optimal View12 o'clock
TouchscreenNone
Outline164.90(W)x100.00(H)x5.70(T) mm
Active Area154.08(W)x85.92(H) mm
Supply Voltage3.3V
Luminance500cd/m² (typ.)
InterfaceRGB
Pin Number40pins
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
